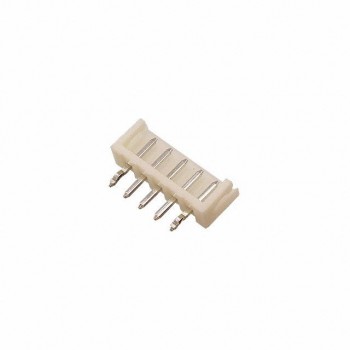

CI4405M1HR0-NH
CviLux
- Lifecycle status Active
- RoHS RoHS Compliant
- Description5 POS 1.25MM(.049) WIRE TO BOARD
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 7,120
Can ship immediately
Pricing:
- 1$0.3
Quote It
Technical Details
- Series:CI44
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Tab
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.134" (3.40mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA6T), Nylon 6T, Halogen Free
- Features:Solder Retention
- Operating Temperature:-40°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):1A
- Voltage Rating:125VAC
