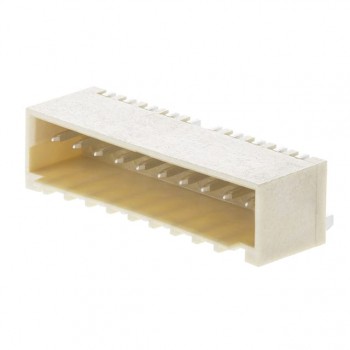

CP-01320110
CviLux
- Lifecycle status Active
- RoHS RoHS Compliant
- Description4.20MM 20 POS DUAL ROWS STRAIGHT
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 8,894
Can ship immediately
Pricing:
- 1$0.48
Quote It
Technical Details
- Series:CP-01
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:20
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.134" (3.40mm)
- Overall Contact Length:-
- Insulation Height:0.504" (12.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:Natural
- Current Rating (Amps):9A
- Voltage Rating:600VAC
