2011-1X05G00SB
Oupiin- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPIN HEADER, SINGLE ROW STRAIGHT
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 7,611
Can ship immediately
Pricing:
- 1$0.5
Quote It
Technical Details
- Series:2011
- Package:Bag
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.457" (11.61mm)
- Insulation Height:0.098" (2.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products

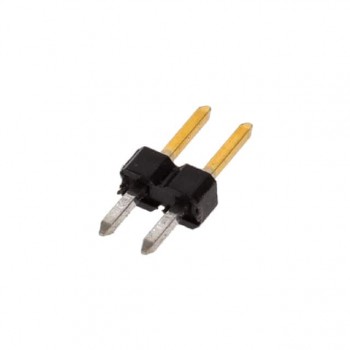

2P,2MM,BRK HDR,SRRT,2.8,0.76AU,B
- 1: $0.50000

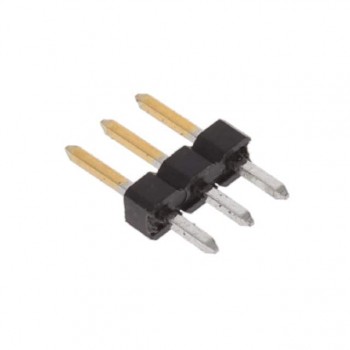

3P,2MM,BRK HDR,SRRT,2.8,0.38AU,B
- 1: $0.50000

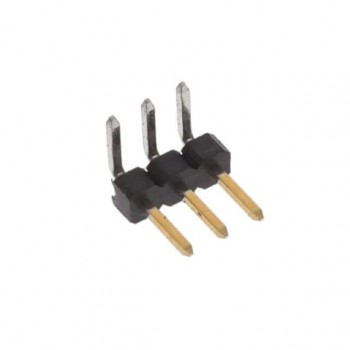

3P,2MM,BRK HDR,SRVT,2.8,0.38AU,T
- 1: $0.50000

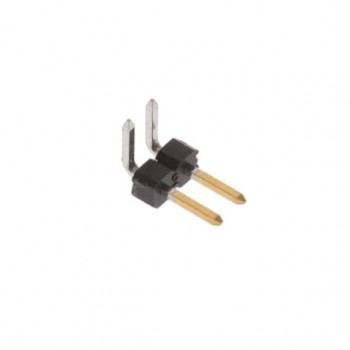

2P,2MM,BRK HDR,SRVT,2.8,0.76AU,T
