PM20C04HBDN
RIA Connect / METZ CONNECT
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPIN HEADER, SMT, DUAL ROW, 2.00
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 2,508
Can ship immediately
Pricing:
- 1$0.65
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.120" (3.05mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.079" (2.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:-
- Contact Material:Copper Zinc
- Insulation Material:Polyethylene
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products
CONN HEADER SMD 2POS 5.08MM
- 1: $0.65000
4P,2MM,BRK HDR,SRRT,2.8,0.38AU,B
- 1: $0.66000
4P,2MM,BRK HDR,DRRT,2.8,0.38AU,B
- 1: $0.66000

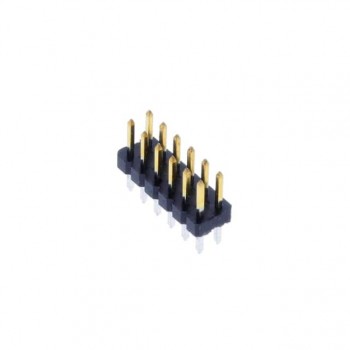

12P,2MM,BRK HDR,DRVT,2.8,0.1AU,T
- 1: $0.66000

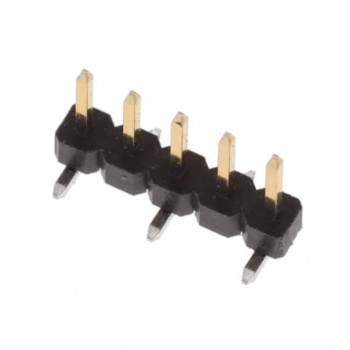

5P,2MM,BRK HDR,SRVT,SMD,0.38AU,T
