2059720021
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionM-ONE 2.0 RA ASSY 2CKT ETP BK
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 3,422
Can ship immediately
Pricing:
- 1$1
Quote It
Technical Details
- Series:Micro-One 205972
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Latch Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.283" (7.19mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Bismuth
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin-Bismuth
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Solder Retention
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):4A per Contact
- Voltage Rating:250VAC/DC
Related Products

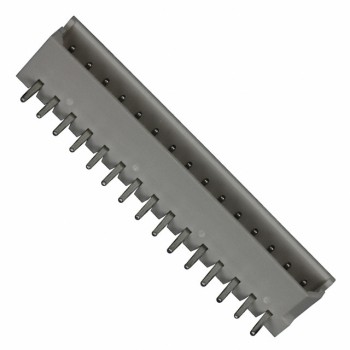

CONN HEADER R/A 15POS 2.5MM
- 1: $0.70000
- 10: $0.65561
- 100: $0.51202

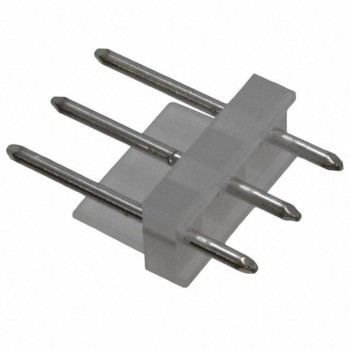

CONN HEADER SMD 3POS 5.08MM
- 1: $0.71000
2P VAL-U-LOK HCS VRT HDR W/P V0
- 1: $0.73000

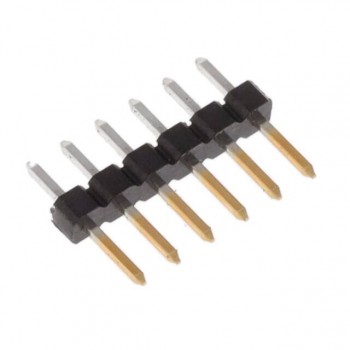

6P,2MM,BRK HDR,SRVT,2.8,0.1AU,TB
- 1: $0.73000

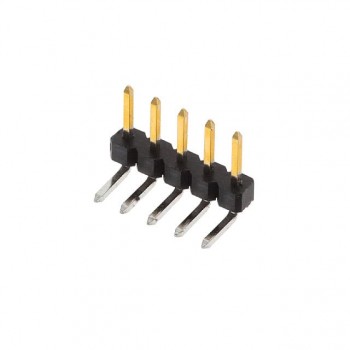

5P,2MM,BRK HDR,SRRT,2.8,0.1AU,TB
- 1: $0.73000

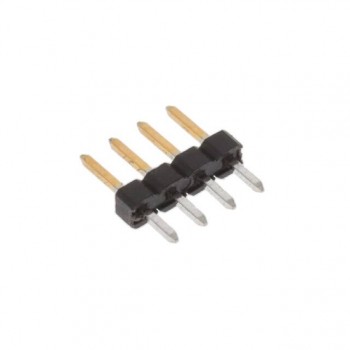

4P,2MM,BRK HDR,SRVT,2.8,0.38AU,T
