ESMC-M-50-SGS-SMT-B-PP-T/R
Adam Tech- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT SMT 50POS 1.27M
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 637
Can ship immediately
Pricing:
- 1$2.52
Quote It
Technical Details
- Series:ESMC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:50
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.157" (4.00mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.325" (8.25mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Board Guide, Pick and Place, Solder Retention
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1.2A
- Voltage Rating:-
Related Products

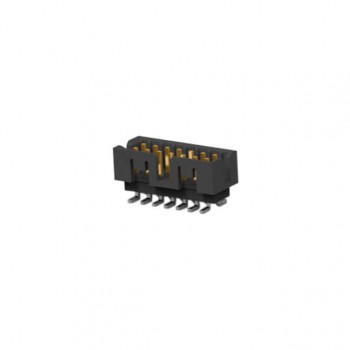

8P, AMPMODU 2MM, DOUBLE ROW SHRO
