1511173024
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 24POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 5,222
Can ship immediately
Pricing:
- 1$1.93
Quote It
Technical Details
- Series:Milli-Grid 151117
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:24
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.142" (3.61mm)
- Contact Length - Post:0.102" (2.60mm)
- Overall Contact Length:-
- Insulation Height:0.252" (6.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:78.7µin (2.00µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Glow Wire Compliant
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A per Contact
- Voltage Rating:125VAC
Related Products
10P, AMPMODU 2MM, DOUBLE ROW SHR
- 1: $1.93000
16P, AMPMODU 2MM, DOUBLE ROW SHR
- 1: $1.93000
16P,2MM,BRK HDR,DRVT,2.8,0.38AU,
- 1: $1.94000
10P, AMPMODU 2MM, DOUBLE ROW SHR
- 1: $1.95000
WR-MM MALE SMT CONNECTOR
- 1: $2.04000
MIBR M 03POS VERT P SMT KS
- 1: $2.88000

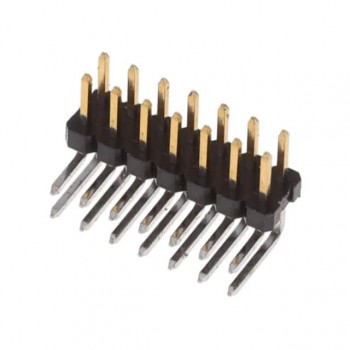

14P,2MM,BRK HDR,DRRT,2.8,0.38AU,
- 1: $1.96000

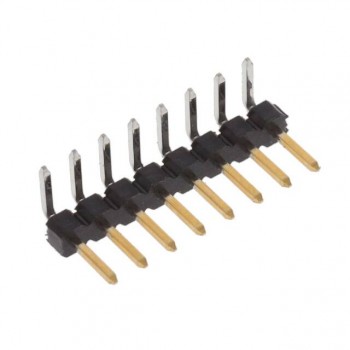

8P,2MM,BRK HDR,SRRT,2.8,0.76AU,T
