1-2842112-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- Description10P,2MM,BRK HDR,SRRT,2.8,0.76AU,
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 4,759
Can ship immediately
Pricing:
- 1$2.33
Quote It
Technical Details
- Series:AMPMODU
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:10
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.157" (4.00mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:-
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A
- Voltage Rating:125VAC/DC
Related Products
12P, AMPMODU 2MM, DOUBLE ROW SHR
- 1: $2.35000
20P, AMPMODU 2MM, DOUBLE ROW SHR
- 1: $2.35000
WR-MM MALE SMT CONNECTOR
- 1: $2.43000
CONN HEADER VERT 12POS 3MM
- 1: $2.41000

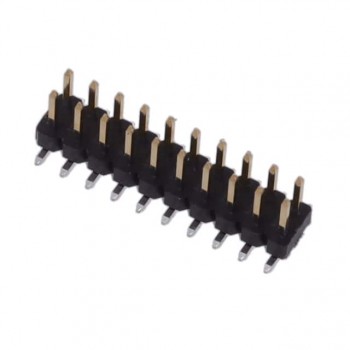

20P,2MM,BRK HDR,DRVT,SMD,0.76AU,
- 1: $3.10000

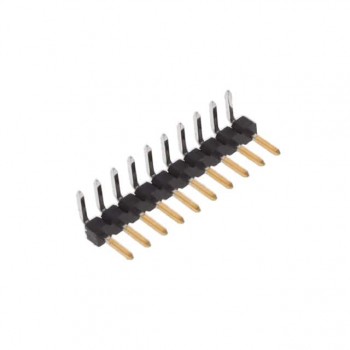

10P,2MM,BRK HDR,SRRT,2.8,0.76AU,
- 1: $2.41000

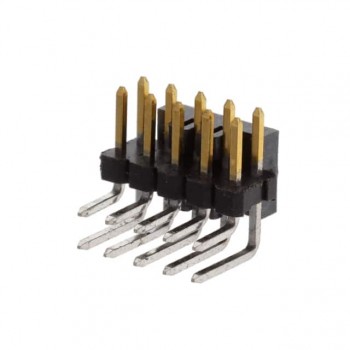

10P,2MM,BRK HDR,DRRT,2.8,0.76AU,
