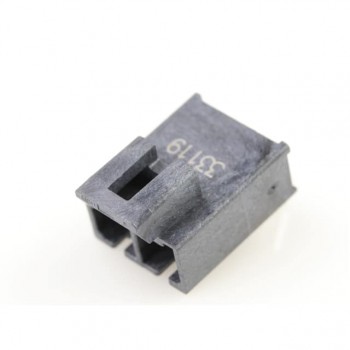

294645
ERNI Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAXIBR M 02POS VERT P SMT BK
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 777
Can ship immediately
Pricing:
- 1$3.52
Quote It
Technical Details
- Series:MAXIBRIDGE
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.161" (4.09mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.370" (9.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide, Pick and Place, Solder Retention
- Operating Temperature:-55°C ~ 150°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):12A per Contact
- Voltage Rating:-
Related Products
20P,2MM,BRK HDR,DRVT,2.8,0.38AU,
- 1: $2.48000
20P,2MM,BRK HDR,DRVT,2.8,0.76AU,
- 1: $2.48000
CONN HEADER VERT 38POS 2MM
- 1: $2.51000
VERT HDR ASSY 2X3 15AU
- 1: $2.53000
CONN HEADER VERT 14POS 3MM
- 1: $2.54000
MINITEKPWR 5.70MM RIGHT ANGLE TH
- 1: $2.53000
MIBR M 06POS VERT P SMT KS
- 1: $3.70000

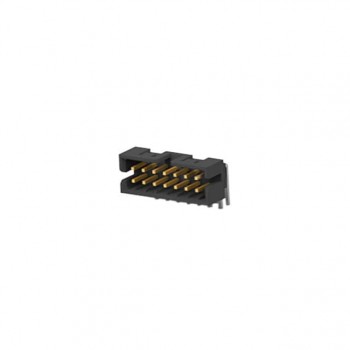

14P, AMPMODU 2MM, DOUBLE ROW SHR
