N2526-6002-RB
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 26POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet N2526-6002-RB Datasheet
-
ECAD Model
- Share
In Stock: 34,959
Can ship immediately
Pricing:
- 1$2.59
- 10$2.34624
- 100$2.01106
- 500$1.67588
- 1,000$1.43647
- 5,000$1.27368
Quote It
Technical Details
- Series:2500
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.243" (6.17mm)
- Contact Length - Post:0.112" (2.84mm)
- Overall Contact Length:-
- Insulation Height:0.390" (9.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features:Keying Slot
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1.75A
- Voltage Rating:-
Related Products

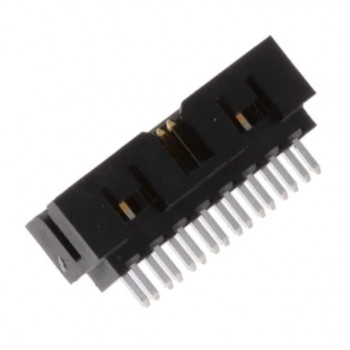

CONN HEADER R/A 20POS 2.54MM
