98414-G06-32ULF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant

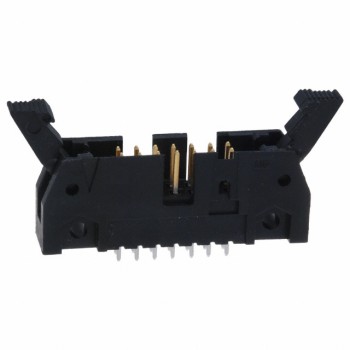

- DescriptionCONN HEADER VERT 32POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 98414-G06-32ULF Datasheet
-
ECAD Model
- Share
In Stock: 505
Can ship immediately
Pricing:
- 1$3.34
- 384$2.16299
Quote It
Technical Details
- Series:Minitek® 2.00mm
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:32
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.157" (4.00mm)
- Contact Length - Post:0.098" (2.50mm)
- Overall Contact Length:-
- Insulation Height:0.232" (5.90mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Cream
- Current Rating (Amps):2A (AC/DC)
- Voltage Rating:200V (AC/DC)
