In Stock: 224

Can ship immediately

Pricing:
  • 1$4.64
  • 216$3.43361

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:44
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.240" (6.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


DF60-4P-10.16DS(27)

CONN HDR 4POS 10.16MM R/A

  • 1: $4.65000

98414-G06-44ULF

CONN HEADER VERT 44POS 2MM

98414-G06-44ULF Datasheet
  • 1: $4.67000
  • 288: $3.02417

N3428-1202RB

CONN HEADER R/A 20POS 2.54MM

N3428-1202RB Datasheet
  • 1: $4.69000
  • 10: $4.50219
  • 100: $3.75200

957240-6002-AR

CONN HEADER VERT 40POS 2MM

957240-6002-AR Datasheet
  • 1: $4.71000
  • 10: $4.53556
  • 100: $3.85063

10142708-12100LF

MINITEKPWR 5.70MM VERTICAL THROU

  • 1: $4.77000

2125281201

R/A HDR 15 GOLD 2X6CKT

  • 1: $4.78000

76383-320LF

CONN HEADER R/A 40POS 2.54MM

76383-320LF Datasheet
  • 1: $4.77000
  • 160: $3.52481

2169791-1

CONN HEADER VERT 44POS 2.54MM

2169791-1 Datasheet
  • 1: $4.84000
  • 10: $4.65903
  • 40: $4.30023

1061696

SMD MALE CONNECTOR, NOMINAL CURR

  • 1: $5.76000

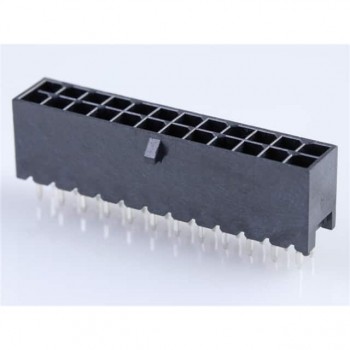

2068322401
