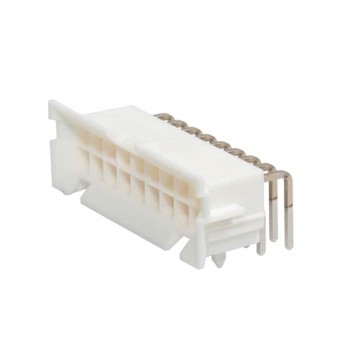

10146997-08000LF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMINITEKPWR 5.70MM RIGHT ANGLE TH
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 257
Can ship immediately
Pricing:
- 1$7.06
Quote It
Technical Details
- Series:Minitek® Pwr 5.7
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.224" (5.70mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.224" (5.70mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.142" (3.60mm)
- Overall Contact Length:-
- Insulation Height:0.572" (14.53mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP), Halogen Free
- Features:Board Guide, Glow Wire Compliant
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:600VAC/DC
