2125282001
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionR/A HDR 15 GOLD 2X10CKT
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 439
Can ship immediately
Pricing:
- 1$8.33
Quote It
Technical Details
- Series:Micro-Fit+ 212528
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:20
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:-
- Insulation Height:0.291" (7.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Board Lock
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600VAC/DC
Related Products
CONN PIN HEADER 4 POS R/A
- 1: $8.36000

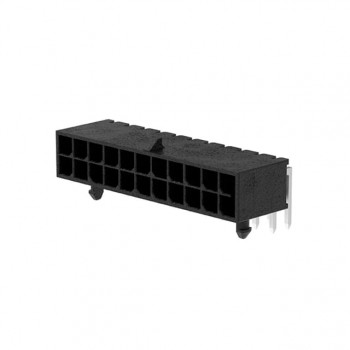

R/A HDR 15 GOLD 2X11CKT
