In Stock: 162

Can ship immediately

Pricing:
  • 1$0.24
  • 10$0.22656
  • 100$0.16042
  • 500$0.13755
  • 1,000$0.11462
  • 5,000$0.10316
  • 10,000$0.09457

Quote It

Technical Details

  • Series:Economy Power 2.5
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Guide
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4.2A
  • Voltage Rating:250VAC

Related Products


5-1123723-5

CONN HEADER VERT 5POS 3.96MM

5-1123723-5 Datasheet
  • 1: $0.24000
  • 10: $0.23000
  • 100: $0.16250

67997-202HLF

CONN HEADER VERT 2POS

67997-202HLF Datasheet
  • 1: $0.24000
  • 10: $0.22473
  • 100: $0.15600

1470109-8

CONN HEADER VERT 8POS 2MM

1470109-8 Datasheet
  • 1: $0.25000
  • 10: $0.23269
  • 100: $0.16500

PRPC008SAAN-RC

CONN HEADER VERT 8POS 2.54MM

PRPC008SAAN-RC Datasheet
  • 1: $0.25000
  • 10: $0.23200
  • 25: $0.19800

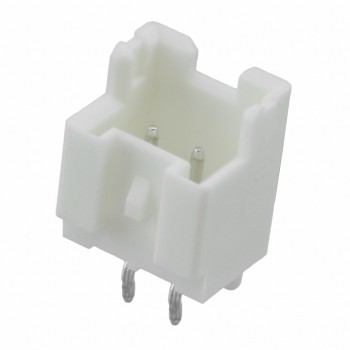

1969730-2

CONN HEADER VERT 2POS 2.5MM

1969730-2 Datasheet
  • 1: $0.25000
  • 10: $0.24000
  • 100: $0.16990

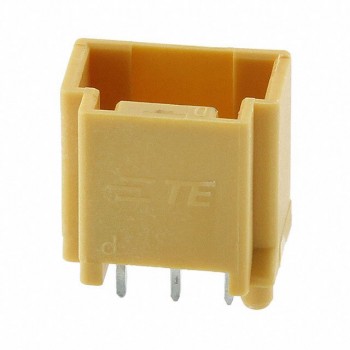

3-1971800-4

CONN HEADER VERT 3POS 2.5MM

3-1971800-4 Datasheet
  • 1: $0.25000
  • 10: $0.23590
  • 100: $0.16904

3-1971800-2

CONN HEADER VERT 3POS 2.5MM

3-1971800-2 Datasheet
  • 1: $0.25000
  • 10: $0.24063
  • 100: $0.17225

3-1971800-3

CONN HEADER VERT 3POS 2.5MM

3-1971800-3 Datasheet
  • 1: $0.25000
  • 10: $0.24063
  • 100: $0.17225

68015-202HLF

CONN HEADER R/A 2POS 2.54MM

68015-202HLF Datasheet
  • 1: $0.25000
  • 10: $0.23478
  • 100: $0.16304

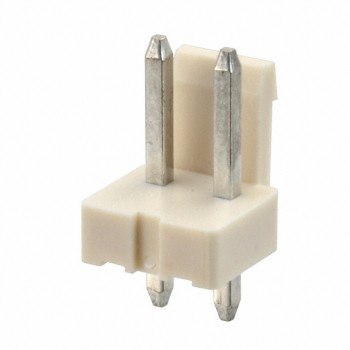

1744489-2
