In Stock: 129

Can ship immediately

Pricing:
  • 1$0.37
  • 10$0.353
  • 100$0.2529
  • 500$0.21944
  • 1,000$0.18605
  • 5,000$0.1622
  • 10,000$0.15266

Quote It

Technical Details

  • Series:Economy Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.303" (7.70mm)



  • Contact Length - Post:0.146" (3.70mm)
  • Overall Contact Length:0.567" (14.40mm)
  • Insulation Height:0.118" (3.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Yellow
  • Current Rating (Amps):7.5A
  • Voltage Rating:250VAC

Related Products


1744037-3

CONN HEADER VERT 3POS 5.08MM

1744037-3 Datasheet
  • 1: $0.37000
  • 10: $0.34566
  • 100: $0.24780

5-146269-1

CONN HEADER VERT 2POS

5-146269-1 Datasheet
  • 1: $0.37000
  • 10: $0.34818
  • 100: $0.24382

10114829-10104LF

CONN HEADER VERT 4POS 1.25MM

10114829-10104LF Datasheet
  • 1: $0.37000
  • 1400: $0.17999
  • 2800: $0.16614

NRPN071PAEN-RC

CONN HEADER VERT 7POS 2MM

NRPN071PAEN-RC Datasheet
  • 1: $0.38000
  • 10: $0.36300
  • 25: $0.31120

1744428-3

CONN HEADER R/A 3POS 3.96MM

1744428-3 Datasheet
  • 1: $0.38000
  • 10: $0.35900
  • 100: $0.25730

1971032-3

CONN HEADER VERT 3POS 2MM

1971032-3 Datasheet
  • 1: $0.38000
  • 10: $0.35796
  • 100: $0.25665

1470224-3

CONN HEADER VERT 3POS 2.5MM

1470224-3 Datasheet
  • 1: $0.39000
  • 10: $0.36757
  • 100: $0.26354

1969729-5

CONN HEADER VERT 5POS 2.5MM

1969729-5 Datasheet
  • 1: $0.39000
  • 10: $0.36812
  • 100: $0.26377

6-1971798-2

CONN HEADER VERT 6POS 2.5MM

6-1971798-2 Datasheet
  • 1: $0.39000
  • 10: $0.36380
  • 100: $0.28421

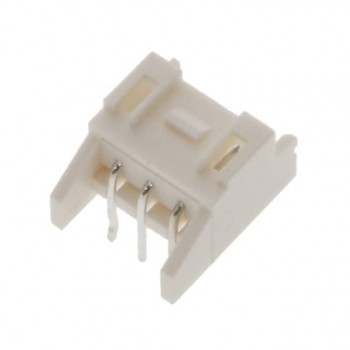

1744446-3
