In Stock: 117

Can ship immediately

Pricing:
  • 1$0.44
  • 10$0.41556
  • 100$0.29783
  • 500$0.25852
  • 1,000$0.21917
  • 5,000$0.19108
  • 10,000$0.17983

Quote It

Technical Details

  • Series:Economy Power 2.5
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Glow Wire Compliant
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4.2A
  • Voltage Rating:250VAC

Related Products


8-1971800-4

CONN HEADER VERT 8POS 2.5MM

8-1971800-4 Datasheet
  • 1: $0.44000
  • 10: $0.41525
  • 100: $0.32439

0537280219

CONN HEADER VERT 2POS

0537280219 Datasheet
  • 1: $0.44000
  • 10: $0.41590
  • 100: $0.31900

8-1971798-3

CONN HEADER VERT 8POS 2.5MM

8-1971798-3 Datasheet
  • 1: $0.44000
  • 10: $0.41067
  • 100: $0.32005

8-1971798-2

CONN HEADER VERT 8POS 2.5MM

8-1971798-2 Datasheet
  • 1: $0.44000
  • 10: $0.41257
  • 100: $0.32246

1744426-4

CONN HEADER R/A 4POS 2.5MM

1744426-4 Datasheet
  • 1: $0.44000
  • 10: $0.42289
  • 25: $0.36471

10114828-10105LF

CONN HEADER SMD 5POS 1.25MM

10114828-10105LF Datasheet
  • 1: $0.44000
  • 1000: $0.24551
  • 2000: $0.23418

NRPN051PARN-RC

CONN HEADER R/A 5POS 2MM

NRPN051PARN-RC Datasheet
  • 1: $0.45000
  • 10: $0.41800
  • 25: $0.37600

0022235074

CONN HEADER VERT 7POS 2.54MM

0022235074 Datasheet
  • 1: $0.45000
  • 10: $0.42300
  • 100: $0.32450

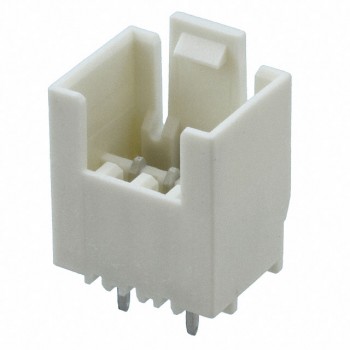

1-1971817-3
