1744057-7
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

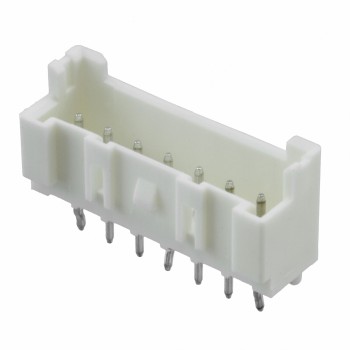

- DescriptionCONN HEADER VERT 7POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1744057-7 Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.46
- 10$0.42574
- 100$0.33267
- 500$0.29276
- 1,000$0.24617
- 5,000$0.21956
- 10,000$0.20626
Quote It
Technical Details
- Series:Economy Power
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 1 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.303" (7.70mm)
- Contact Length - Post:0.145" (3.68mm)
- Overall Contact Length:0.575" (14.60mm)
- Insulation Height:0.127" (3.22mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:120.0µin (3.05µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:Board Guide
- Operating Temperature:-25°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):7.5A
- Voltage Rating:250VAC
