929647-01-02-EU

3M
In Stock: 14,169

Can ship immediately

Pricing:
  • 1$0.61
  • 10$0.57
  • 25$0.5128
  • 50$0.4556
  • 100$0.4367
  • 250$0.39872
  • 500$0.37974

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.445" (11.30mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products

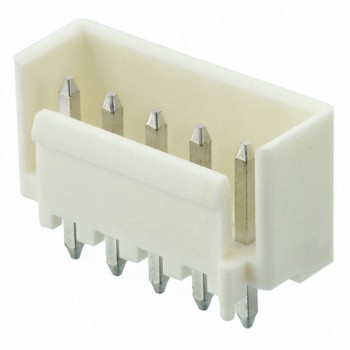

1744427-5

CONN HEADER VERT 5POS 3.96MM

1744427-5 Datasheet
  • 1: $0.61000
  • 10: $0.57065
  • 25: $0.51712

DF3E-5P-2H(20)

CONN HEADER SMD R/A 5POS 2MM

DF3E-5P-2H(20) Datasheet
  • 1: $0.61000
  • 26: $0.51308
  • 104: $0.43702

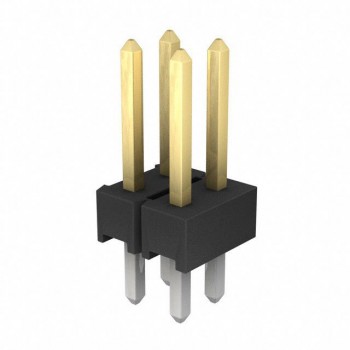

9-146261-0-02

CONN HEADER VERT 4POS 2.54MM

9-146261-0-02 Datasheet
  • 1: $0.62000
  • 10: $0.58411
  • 25: $0.52515

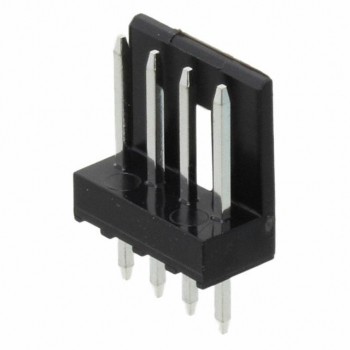

2-171825-4

CONN HEADER VERT 4POS 2.5MM

2-171825-4 Datasheet
  • 1: $0.62000
  • 10: $0.57737
  • 100: $0.45115

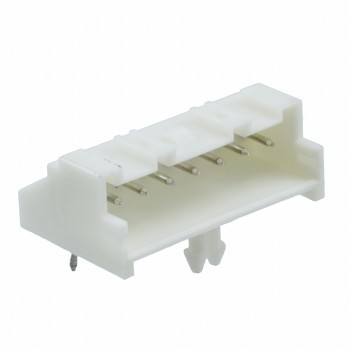

1744426-7

CONN HEADER R/A 7POS 2.5MM

1744426-7 Datasheet
  • 1: $0.62000
  • 10: $0.58430
  • 25: $0.52982

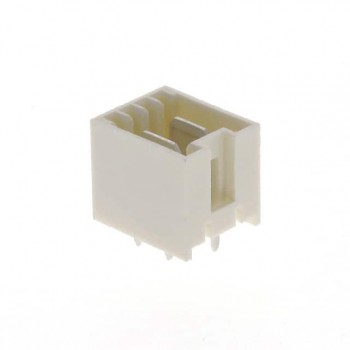

6-1971895-2

CONN HEADER VERT 2POS 5MM

6-1971895-2 Datasheet
  • 1: $0.62000
  • 10: $0.57834
  • 25: $0.52468

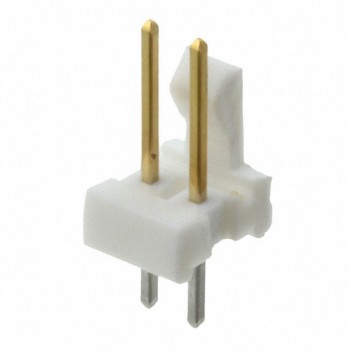

641126-2

CONN HEADER VERT 2POS 2.54MM

641126-2 Datasheet
  • 1: $0.62000
  • 10: $0.57806
  • 100: $0.44348

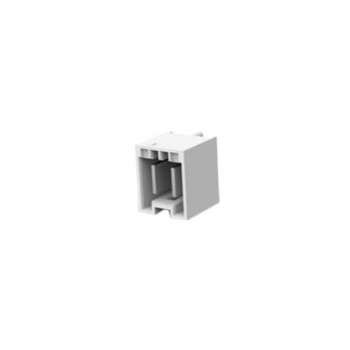

2232532-2

CONN HEADER VERT 2POS 5MM

2232532-2 Datasheet
  • 1: $0.62000
  • 10: $0.57834
  • 100: $0.45241

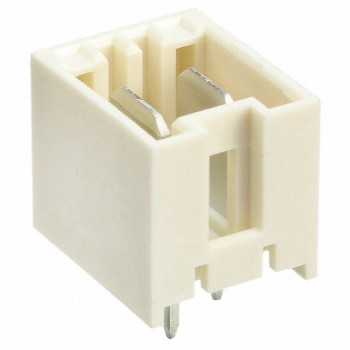

2232043-2

CONN HEADER VERT 2POS 5MM

2232043-2 Datasheet
  • 1: $0.62000
  • 10: $0.57834
  • 100: $0.45241

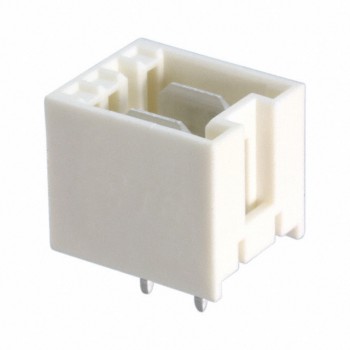

2-2232043-2
