In Stock: 143

Can ship immediately

Pricing:
  • 1$0.64
  • 20,000$0.30283

Quote It

Technical Details

  • Series:Mini CT
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.059" (1.50mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.094" (2.40mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.272" (6.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Beige
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:50VAC

Related Products


1744439-6

CONN HEADER VERT 6POS 2.5MM

1744439-6 Datasheet
  • 1: $0.66000
  • 10: $0.62158
  • 100: $0.48623

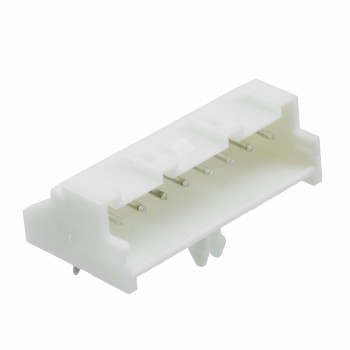

1744426-8

CONN HEADER R/A 8POS 2.5MM

1744426-8 Datasheet
  • 1: $0.66000
  • 10: $0.62104
  • 25: $0.56267

78208-103

CONN HEADER R/A 3POS 2.54MM

78208-103 Datasheet
  • 1: $0.66000
  • 10: $0.61997
  • 100: $0.47552

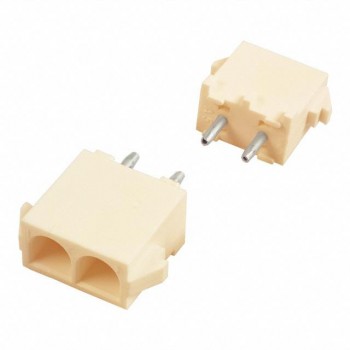

350582-1

CONN HEADER VERT 2POS 6.35MM

350582-1 Datasheet
  • 1: $0.66000
  • 10: $0.61910
  • 100: $0.48450

917724-4

CONN HEADER VERT 4POS 2.5MM

917724-4 Datasheet
  • 1: $0.67000
  • 10: $0.63557
  • 100: $0.49654

BM08B-SURS-TF(LF)(SN)

CONN HEADER SMD 8POS 0.8MM

  • 1: $0.67000
  • 2500: $0.31281
  • 5000: $0.30238

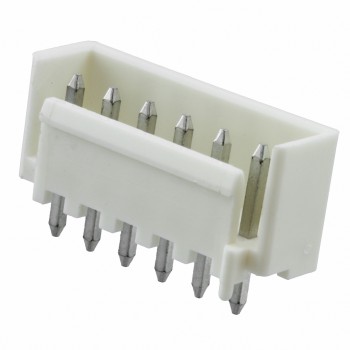

1744427-6

CONN HEADER VERT 6POS 3.96MM

1744427-6 Datasheet
  • 1: $0.67000
  • 10: $0.62665
  • 25: $0.56714

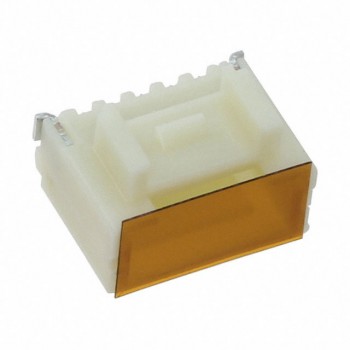

5019400507
