DF3EA-2P-2H(51)

Hirose
In Stock: 4,047

Can ship immediately

Pricing:
  • 1$0.74
  • 1,000$0.3036
  • 2,000$0.2944
  • 3,000$0.276

Quote It

Technical Details

  • Series:DF3
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Solder Retention
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Beige
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


2232511-3

CONN HEADER VERT 3POS 5MM

2232511-3 Datasheet
  • 1: $0.74000
  • 10: $0.68848
  • 100: $0.53795

0039295046

CONN HEADER VERT 4POS 4.2MM

0039295046 Datasheet
  • 1: $0.74000
  • 10: $0.64795
  • 100: $0.55906

0874370573

CONN HEADER SMD 5POS 1.5MM

0874370573 Datasheet
  • 1: $0.74000
  • 900: $0.66728
  • 1800: $0.57195

1-647676-0

CONN HEADER R/A 10POS 3.96MM

1-647676-0 Datasheet
  • 1: $0.74000
  • 10: $0.69364
  • 100: $0.54172

SM05B-SHLS-TF(LF)(SN)

CONN HEADER SMD R/A 5POS 1MM

  • 1: $0.75000
  • 4500: $0.35209
  • 9000: $0.31688

MDF7-8P-2.54DSA(55)

CONN HEADER VERT 8POS 2.54MM

MDF7-8P-2.54DSA(55) Datasheet
  • 1: $0.75000
  • 10: $0.66300
  • 25: $0.62400

1744427-7

CONN HEADER VERT 7POS 3.96MM

1744427-7 Datasheet
  • 1: $0.75000
  • 10: $0.70536
  • 25: $0.64000

DF13B-8P-1.25V(21)

CONN HEADER SMD 8POS 1.25MM

  • 1: $0.75000
  • 1000: $0.40000
  • 2000: $0.37500

DF57H-2P-1.2V(23)

CONN HEADER SMD 2POS 1.2MM

DF57H-2P-1.2V(23) Datasheet
  • 1: $0.75000
  • 5000: $0.35000

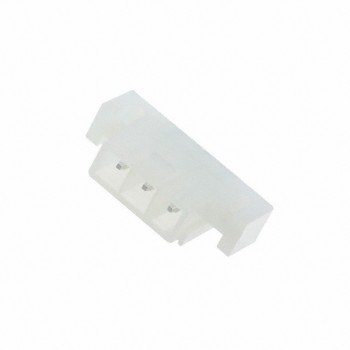

2029154-3
