In Stock: 123

Can ship immediately

Pricing:
  • 1$0.89
  • 10$0.78437
  • 100$0.68462
  • 500$0.57052
  • 1,000$0.51346
  • 5,000$0.45641
  • 10,000$0.43645

Quote It

Technical Details

  • Series:Economy Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.338" (8.59mm)



  • Contact Length - Post:0.142" (3.60mm)
  • Overall Contact Length:-
  • Insulation Height:0.339" (8.61mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Glow Wire Compliant
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):7.5A
  • Voltage Rating:250VAC

Related Products


2-1971846-2

CONN HEADER VERT 2POS 5MM

2-1971846-2 Datasheet
  • 1: $0.89000
  • 10: $0.79122
  • 100: $0.69048

3-1971846-2

CONN HEADER VERT 2POS 5MM

3-1971846-2 Datasheet
  • 1: $0.89000
  • 10: $0.79122
  • 400: $0.63296

3-1376383-4

CONN HEADER VERT 3POS 5MM

3-1376383-4 Datasheet
  • 1: $0.90000
  • 10: $0.79435
  • 100: $0.69300

2-2232043-4

CONN HEADER VERT 4POS 5MM

2-2232043-4 Datasheet
  • 1: $0.90000
  • 10: $0.79548
  • 100: $0.69406

DF50A-5P-1H(51)

CONN HEADER SMD R/A 5POS 1MM

DF50A-5P-1H(51) Datasheet
  • 1: $0.90000
  • 1000: $0.48000
  • 2000: $0.45000

917786-1

CONN HEADER VERT 8POS 2.5MM

917786-1 Datasheet
  • 1: $0.90000
  • 10: $0.79969
  • 100: $0.69769

647676-9

CONN HEADER R/A 9POS 3.96MM

647676-9 Datasheet
  • 1: $0.90000
  • 10: $0.79924
  • 100: $0.69760

179838-2

CONN HEADER VERT 2POS 3.96MM

179838-2 Datasheet
  • 1: $0.91000
  • 10: $0.80824
  • 490: $0.64646

10114830-11111LF

CONN HEADER SMD R/A 11POS 1.25MM

10114830-11111LF Datasheet
  • 1: $0.91000
  • 1300: $0.52128
  • 2600: $0.47784

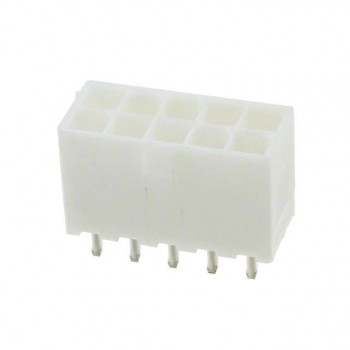

1-1586038-0
