In Stock: 130

Can ship immediately

Pricing:
  • 1$1.59
  • 10$1.45117
  • 100$1.26006
  • 500$1.06825
  • 1,000$0.9313
  • 5,000$0.83816
  • 10,000$0.82174

Quote It

Technical Details

  • Series:Grace Inertia, GIC
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.205" (5.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.445" (11.30mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


176153-3

CONN HEADER R/A 3POS 2.5MM

176153-3 Datasheet
  • 1: $1.60000
  • 10: $1.45455
  • 100: $1.24696

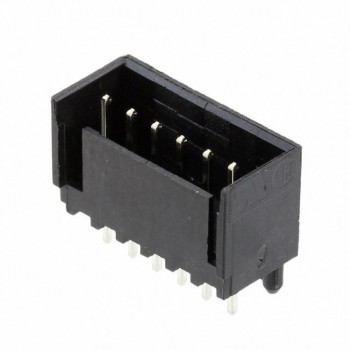

3-644893-6

CONN HEADER VERT 6POS 2.54MM

3-644893-6 Datasheet
  • 1: $1.60000
  • 10: $1.45834
  • 100: $1.26532

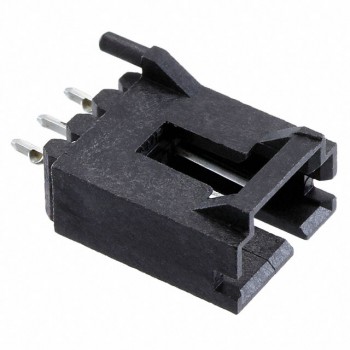

5-104450-2

CONN HEADER VERT 3POS 2.54MM

5-104450-2 Datasheet
  • 1: $1.60000
  • 52: $1.30494
  • 104: $1.24554

BM13B-SRSS-TBT(LF)(SN)

CONN HEADER SMD 13POS 1MM

  • 1: $1.61000
  • 1500: $0.86617
  • 3000: $0.83630

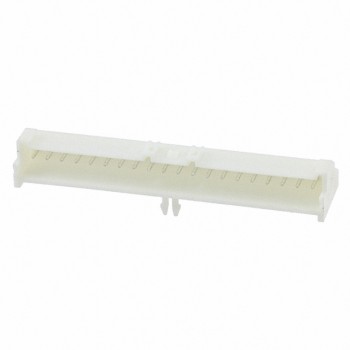

2-1744426-0

CONN HEADER R/A 20POS 2.5MM

2-1744426-0 Datasheet
  • 1: $1.61000
  • 10: $1.46668
  • 100: $1.27330

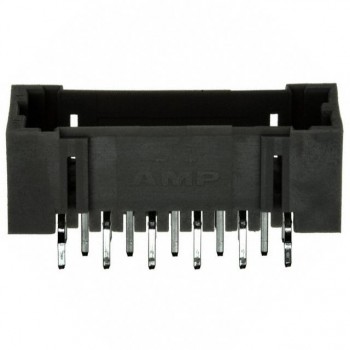

2-292208-2
