2035552022

Woodhead - Molex
In Stock: 1,200

Can ship immediately

Pricing:
  • 1$1.9

Quote It

Technical Details

  • Series:CP-6.5 203555
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:-
  • Number of Positions:2
  • Number of Rows:2
  • Row Spacing - Mating:0.256" (6.50mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.602" (15.29mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Red
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC/DC

Related Products


1054301103

CONN HEADER SMD R/A 3POS 2.5MM

  • 1: $1.91000

0877591474

CONN HEADER SMD 14POS 2MM

0877591474 Datasheet
  • 1: $1.91000

5-104450-4

CONN HEADER VERT 5POS 2.54MM

5-104450-4 Datasheet
  • 1: $1.91000
  • 35: $1.63108
  • 105: $1.48929

5-147292-2

CONN HEADER SMD 10POS 2.54MM

5-147292-2 Datasheet
  • 1: $1.92000
  • 2000: $0.98283
  • 4000: $0.94894

1747996-3

CONN HEADER VERT 2POS

1747996-3 Datasheet
  • 1: $1.93000
  • 10: $1.76404
  • 25: $1.66446

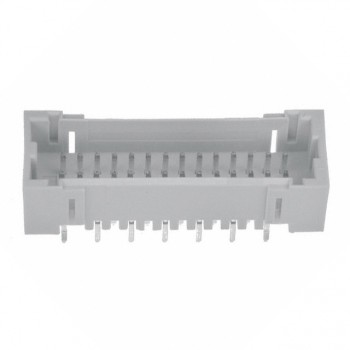

2-292208-8

CONN HEADER VERT 28POS 1.5MM

2-292208-8 Datasheet
  • 1: $1.94000
  • 10: $1.76809
  • 100: $1.53490

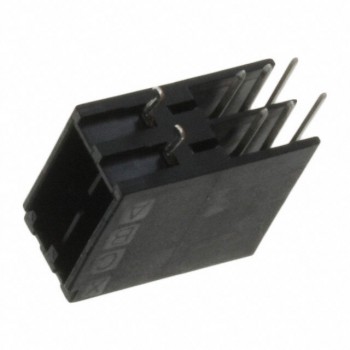

1-1827583-2

CONN HEADER VERT 6POS 3.5MM

1-1827583-2 Datasheet
  • 1: $1.95000
  • 10: $1.77964
  • 100: $1.54532

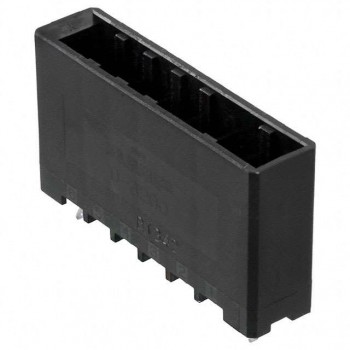

1-316133-5

CONN HEADER VERT 6POS 5.08MM

1-316133-5 Datasheet
  • 1: $1.95000
  • 12: $1.77069
  • 108: $1.51739

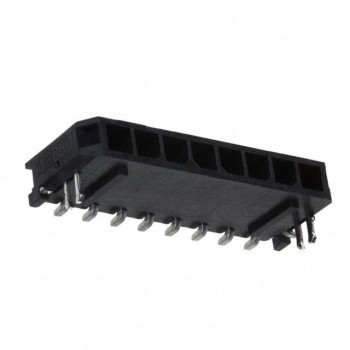

0436500810

CONN HEADER SMD R/A 8POS 3MM

  • 1: $2.80000

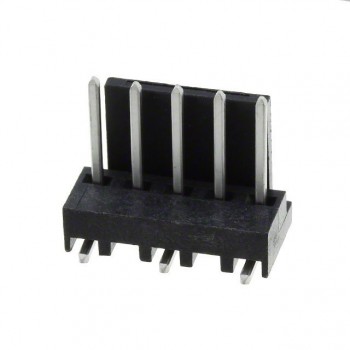

3-647106-5
