0878311621

Woodhead - Molex
In Stock: 1,969

Can ship immediately

Pricing:
  • 1$2.59
  • 10$2.3504
  • 100$2.01461
  • 500$1.67882
  • 2,800$1.34306
  • 5,600$1.2759

Quote It

Technical Details

  • Series:Milli-Grid 87831
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125V

Related Products


1-2013325-4

CONN HEADER VERT 8POS 3.5MM

1-2013325-4 Datasheet
  • 1: $2.59000
  • 23: $2.36893
  • 46: $2.23479

0436500924

CONN HEADER SMD 9POS 3MM

0436500924 Datasheet
  • 1: $3.70000
  • 1000: $1.96925

1-178297-5

CONN HEADER R/A 8POS 3.81MM

1-178297-5 Datasheet
  • 1: $2.60000
  • 10: $2.37086
  • 100: $2.05550

102203-2

CONN HEADER R/A 5POS 2.54MM

102203-2 Datasheet
  • 1: $2.60000
  • 34: $2.28418
  • 102: $2.07655

1734595-9

CONN HEADER SMD 9POS 1MM

1734595-9 Datasheet
  • 1: $2.61000
  • 1000: $1.43456
  • 2000: $1.38674

5176264-9

CONN HEADER VERT 20POS 2MM

5176264-9 Datasheet
  • 1: $2.62000
  • 10: $2.38752
  • 100: $2.07220

1-316130-2

CONN HEADER R/A 5POS 5.08MM

1-316130-2 Datasheet
  • 1: $2.62000
  • 10: $2.38901
  • 100: $2.07312

0537801270

CONN HEADER SMD R/A 12POS 1.25MM

0537801270 Datasheet
  • 1: $2.62000
  • 1500: $1.46664
  • 3000: $1.41426

610114249121

CONN HEADER SMD R/A 14POS 2.54MM

  • 1: $2.62000
  • 350: $2.13500
  • 700: $1.86800

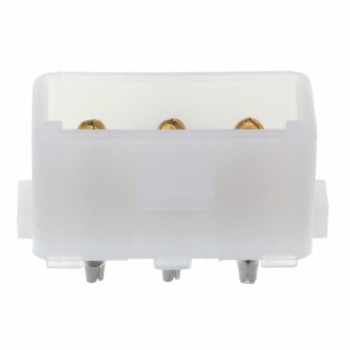

1586532-2
