0430450407

Woodhead - Molex
In Stock: 1,705,588

Can ship immediately

Pricing:
  • 1$2.92
  • 200$2.3328
  • 400$2.0412
  • 600$1.98288
  • 1,000$1.69128
  • 2,000$1.63296
  • 5,000$1.51632

Quote It

Technical Details

  • Series:Micro-Fit 3.0 43045
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.290" (7.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):8A
  • Voltage Rating:600V

Related Products


610116249121

CONN HEADER SMD R/A 16POS 2.54MM

  • 1: $2.93000
  • 350: $2.54137

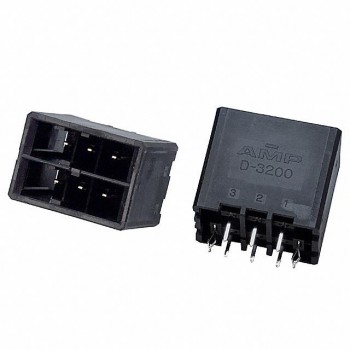

1-178140-2

CONN HEADER VERT 6POS 5.08MM

1-178140-2 Datasheet
  • 1: $2.96000
  • 10: $2.85473
  • 100: $2.41574

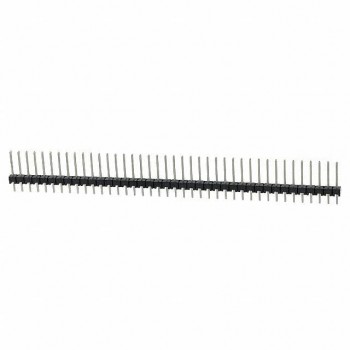

4-146274-0

CONN HEADER VERT 40POS 2.54MM

4-146274-0 Datasheet
  • 1: $2.96000
  • 10: $2.83685
  • 100: $2.36411

67997-140HLF

CONN HEADER VERT 40POS 2.54MM

67997-140HLF Datasheet
  • 1: $2.98000
  • 10: $2.86500
  • 100: $2.42480

HIF3FC-26PA-2.54DS(71)

CONN HEADER R/A 26POS 2.54MM

  • 1: $2.98000
  • 10: $2.85575
  • 280: $2.08231

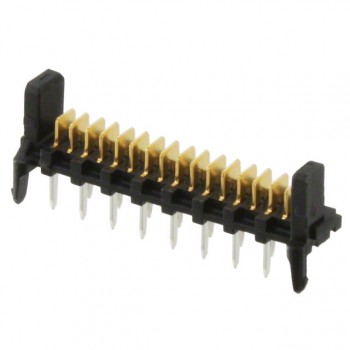

0903257016

CONN HEADER VERT 16POS 1.27MM

  • 1: $2.98000

HIF3H-14PB-2.54DSA(71)

CONN HEADER VERT 14POS 2.54MM

HIF3H-14PB-2.54DSA(71) Datasheet
  • 1: $3.00000
  • 10: $2.88000
  • 200: $2.40000

HIF3BA-10PA-2.54DS(71)

CONN HEADER R/A 10POS 2.54MM

HIF3BA-10PA-2.54DS(71) Datasheet
  • 1: $3.00000
  • 10: $2.88000
  • 100: $2.40000

98414-G06-26ULF

CONN HEADER VERT 26POS 2MM

98414-G06-26ULF Datasheet
  • 1: $3.04000
  • 10: $2.92300
  • 480: $2.13105

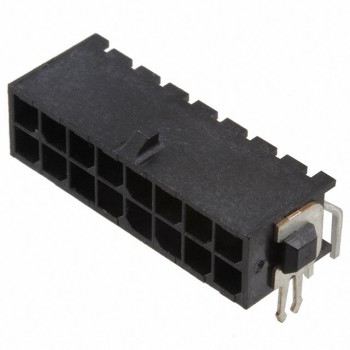

4-794677-6
