In Stock: 853

Can ship immediately

Pricing:
  • 1$3.22
  • 800$1.84432
  • 1,600$1.66584
  • 2,400$1.60635
  • 5,600$1.54685

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.244" (6.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot, Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


98424-G52-24ALF

CONN HEADER SMD 24POS 2MM

98424-G52-24ALF Datasheet
  • 1: $3.22000
  • 600: $2.02352
  • 1200: $1.72593

5-826951-0

CONN HEADER R/A 50POS 2.54MM

5-826951-0 Datasheet
  • 1: $3.23000
  • 10: $3.09627
  • 100: $2.58050

DF20F-40DP-1V(56)

CONN HEADER SMD 40POS 1MM

DF20F-40DP-1V(56) Datasheet
  • 1: $3.23000
  • 1000: $2.05840

D3432-6002-AR

CONN HEADER VERT 40POS 2.54MM

D3432-6002-AR Datasheet
  • 1: $3.22000
  • 10: $3.08641
  • 200: $2.57201

DF11C-26DP-2V(57)

CONN HEADER SMD 26POS 2MM

DF11C-26DP-2V(57) Datasheet
  • 1: $3.28000
  • 500: $2.14200

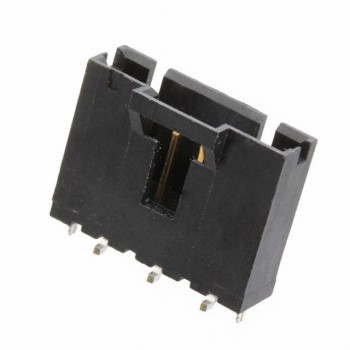

5-1375582-5

CONN HEADER SMD 6POS 2.54MM

5-1375582-5 Datasheet
  • 1: $3.29000
  • 900: $1.97794
  • 1800: $1.78653

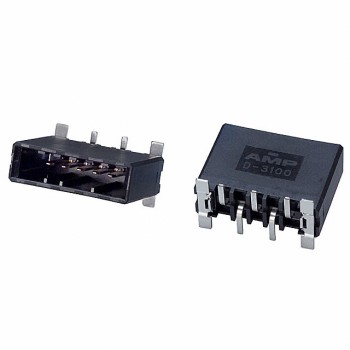

1-177665-2

CONN HEADER SMD 5POS 3.81MM

1-177665-2 Datasheet
  • 1: $3.30000
  • 10: $3.17456
  • 100: $2.66653

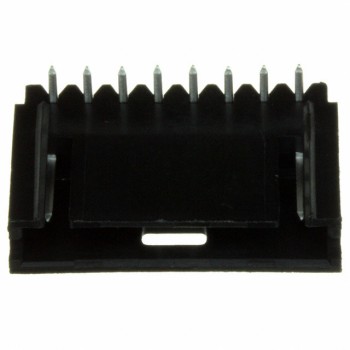

5-102523-6

CONN HEADER R/A 8POS 2.54MM

5-102523-6 Datasheet
  • 1: $3.30000
  • 23: $3.17087
  • 115: $2.64230

HIF3CD-10PA-2.54DSA(71)

CONN HEADER VERT 10POS 2.54MM

HIF3CD-10PA-2.54DSA(71) Datasheet
  • 1: $3.30000
  • 10: $3.16259
  • 180: $2.63549

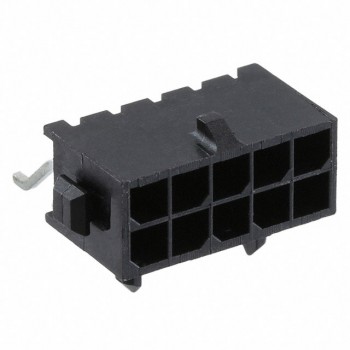

4-794622-0
