HIF3BA-16PA-2.54DSA(71)

Hirose
In Stock: 330

Can ship immediately

Pricing:
  • 1$3.32
  • 10$3.18241
  • 100$2.65201

Quote It

Technical Details

  • Series:HIF3B
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.657" (16.70mm)
  • Insulation Height:0.701" (17.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:200V

Related Products


HIF3BAF-10PA-2.54DSA(71)

CONN HEADER VERT 10POS 2.54MM

HIF3BAF-10PA-2.54DSA(71) Datasheet
  • 1: $3.32000
  • 10: $3.18186
  • 180: $2.65154

2510-6003UB

CONN HEADER VERT 10POS 2.54MM

2510-6003UB Datasheet
  • 1: $3.34000
  • 10: $3.20640
  • 100: $2.67200

1-1747277-2

CONN HEADER VERT 2POS 6.35MM

1-1747277-2 Datasheet
  • 1: $3.34000
  • 10: $3.21345
  • 100: $2.71971

4-794638-0

CONN HEADER SMD 10POS 3MM

4-794638-0 Datasheet
  • 1: $3.34000
  • 175: $2.69371
  • 350: $2.35700

57202-G52-25ALF

CONN HEADER SMD 50POS 2MM

57202-G52-25ALF Datasheet
  • 1: $3.37000
  • 750: $1.93363

0349610382

CONN HEADER R/A 38POS

0349610382 Datasheet
  • 1: $3.37000
  • 10: $3.24316
  • 100: $2.74442

4-794677-8

CONN HEADER R/A 18POS 3MM

4-794677-8 Datasheet
  • 1: $3.38000
  • 10: $3.24985
  • 117: $2.74976

6-104477-2

CONN HEADER R/A 10POS 1.27MM

6-104477-2 Datasheet
  • 1: $3.38000
  • 40: $2.97440
  • 120: $2.70400

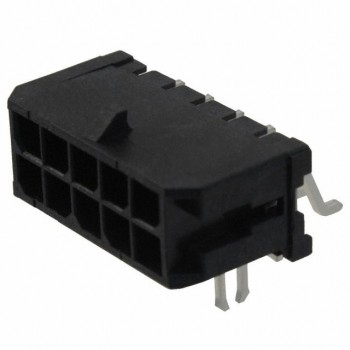

0430451006

CONN HEADER SMD R/A 10POS 3MM

0430451006 Datasheet
  • 1: $3.38000
  • 200: $2.70620
  • 400: $2.36793

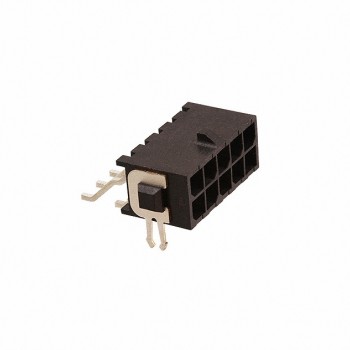

4-794625-0
