HIF3BAF-16PA-2.54DS(71)

Hirose
In Stock: 109

Can ship immediately

Pricing:
  • 1$3.45
  • 10$3.312
  • 160$2.76

Quote It

Technical Details

  • Series:HIF3B
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.335" (8.51mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:200V

Related Products


15130262601000

HAR-FLEX STR M 4.85MM 26P PL1

  • 1: $3.46500

0554600572

CONN HEADER SMD 5POS 2MM

0554600572 Datasheet
  • 1: $3.47000
  • 900: $2.15326
  • 1800: $1.94488

98424-G52-28ALF

CONN HEADER SMD 28POS 2MM

98424-G52-28ALF Datasheet
  • 1: $3.47000
  • 600: $2.17923
  • 1200: $1.85876

6-104186-1

CONN HEADER R/A 20POS 1.27MM

6-104186-1 Datasheet
  • 1: $3.48000
  • 20: $3.34080
  • 100: $2.78400

HIF3FC-34PA-2.54DSA(71)

CONN HEADER VERT 34POS 2.54MM

  • 1: $3.48000
  • 10: $3.34080
  • 240: $2.78400

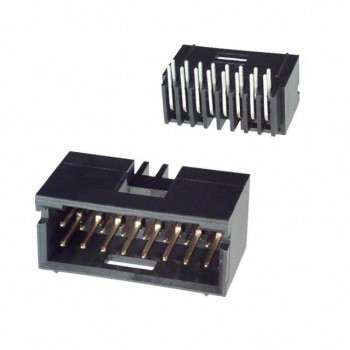

5-102570-6

CONN HEADER R/A 16POS 2.54MM

5-102570-6 Datasheet
  • 1: $3.49000
  • 10: $3.35477
  • 176: $2.79586

DF19-14P-1V(56)

CONN HEADER SMD 14POS 1MM

DF19-14P-1V(56) Datasheet
  • 1: $3.50000
  • 1000: $1.95750

3408-5002

CONN HEADER R/A 16POS 2.54MM

3408-5002 Datasheet
  • 1: $3.52000
  • 10: $3.37899
  • 100: $2.81600

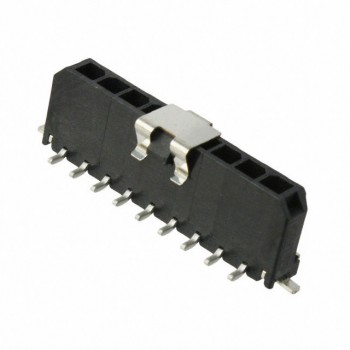

0436500925
