In Stock: 200

Can ship immediately

Pricing:
  • 1$9.38
  • 15$8.97321
  • 105$7.54563
  • 510$6.32204
  • 1,005$5.58786

Quote It

Technical Details

  • Series:AMPMODU 50/50 Grid
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.367" (9.33mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Lock
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):0.5A per Contact
  • Voltage Rating:-

Related Products

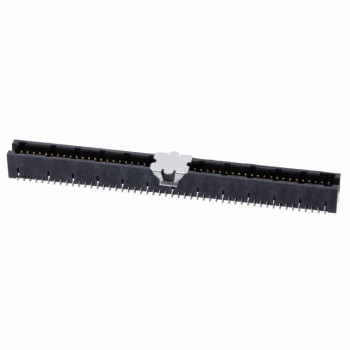

5-147381-9

CONN HEADER SMD 100POS 1.27MM

5-147381-9 Datasheet
  • 1: $9.50000
  • 1350: $5.38410

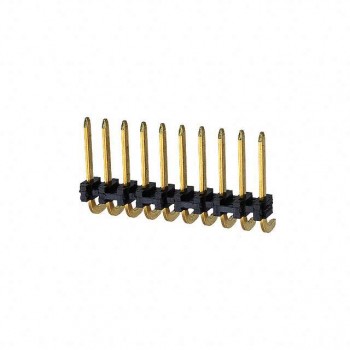

1-87258-0

CONN HEADER R/A 10POS 3.96MM

1-87258-0 Datasheet
  • 1: $9.60000
  • 10: $9.18779
  • 100: $7.72570

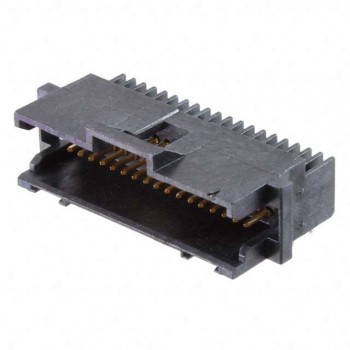

6-104069-4

CONN HEADER R/A 34POS 1.27MM

6-104069-4 Datasheet
  • 1: $9.68000
  • 18: $9.25404
  • 108: $7.78180

1043756

CONN HEADER 0.8MM 52POS SMD

  • 1: $9.70000
  • 250: $8.51632
  • 500: $7.96688

10140949-101LF

CONN HEADER R/A 14POS

10140949-101LF Datasheet
  • 1: $9.79000
  • 150: $7.28453
  • 300: $6.49703

HIF3F-60PA-2.54DSA(71)

CONN HEADER VERT 60POS 2.54MM

HIF3F-60PA-2.54DSA(71) Datasheet
  • 1: $9.80000
  • 10: $9.37391
  • 120: $7.88261

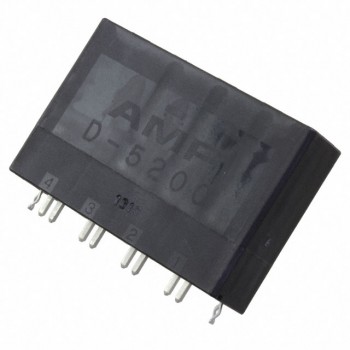

2-917542-3
