207583-3
Tyco Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 6POS 5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 207583-3 Datasheet
-
ECAD Model
- Share
In Stock: 2,099
Can ship immediately
Pricing:
- 1$12.34
- 10$11.21624
- 100$9.5338
- 500$8.13177
- 1,000$7.4588
Quote It
Technical Details
- Series:Metrimate
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.197" (5.00mm)
- Number of Positions:6
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.186" (4.72mm)
- Overall Contact Length:-
- Insulation Height:0.689" (17.50mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Mounting Flange
- Operating Temperature:-55°C ~ 130°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black, Red
- Current Rating (Amps):7.5A
- Voltage Rating:600V
Related Products

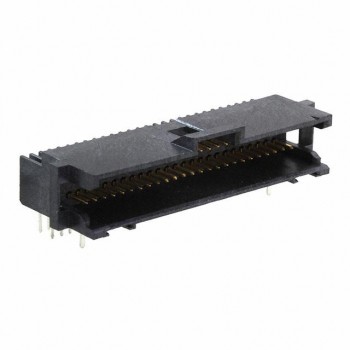

CONN HEADER 0.8MM 80POS SMD
