5016453420
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 34POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 208
Can ship immediately
Pricing:
- 1$2.4
Quote It
Technical Details
- Series:iGrid 501645
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:34
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.472" (12.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Features:Board Guide
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

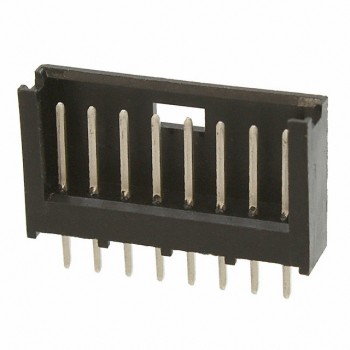

CONN HEADER R/A 8POS 3MM
