In Stock: 239

Can ship immediately

Pricing:
  • 1$3.69
  • 10$3.305
  • 100$2.7216
  • 500$2.15136
  • 1,000$1.872

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.420" (10.67mm)
  • Overall Contact Length:0.838" (21.29mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


1723161212

CONN HEADER R/A 12POS 3.5MM

1723161212 Datasheet
  • 1: $3.95000
  • 10: $3.78779
  • 100: $3.15633

0877594014

CONN HEADER SMD 40POS 2MM

0877594014 Datasheet
  • 1: $3.97000
  • 10: $3.81039
  • 100: $3.17560

PBC36SAFN

CONN HEADER VERT 36POS 2.54MM

PBC36SAFN Datasheet
  • 1: $3.98000
  • 10: $3.55700
  • 100: $2.92950

852-10-006-10-003000

CONN HEADER VERT 6POS 1.27MM

852-10-006-10-003000 Datasheet
  • 1: $4.03000
  • 10: $3.65692
  • 100: $3.13390

PBC36SBCN

CONN HEADER R/A 36POS 2.54MM

PBC36SBCN Datasheet
  • 1: $4.05000
  • 10: $3.62600
  • 100: $2.98620

103166-2

CONN HEADER R/A 8POS 2.54MM

103166-2 Datasheet
  • 1: $4.09000
  • 10: $3.92484
  • 184: $3.27038

N3440-6303RB

CONN HEADER VERT 30POS 2.54MM

N3440-6303RB Datasheet
  • 1: $4.20000
  • 10: $4.03393
  • 250: $2.94145

5103310-8

CONN HEADER R/A 40POS 2.54MM

5103310-8 Datasheet
  • 1: $4.37000
  • 40: $3.84233
  • 120: $3.49318

PBC36SAHN

CONN HEADER VERT 36POS 2.54MM

PBC36SAHN Datasheet
  • 1: $4.39000
  • 10: $3.92400
  • 100: $3.23190

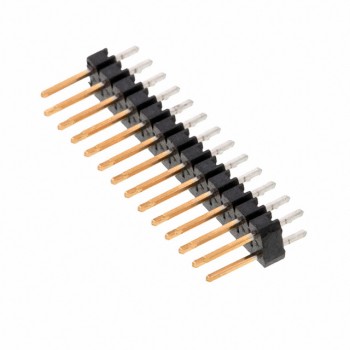

6-146256-3
