0430452212
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 22POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0430452212 Datasheet
-
ECAD Model
- Share
In Stock: 291
Can ship immediately
Pricing:
- 1$4.52
- 10$4.33839
- 100$3.61499
- 576$3.07275
- 1,152$2.62086
Quote It
Technical Details
- Series:Micro-Fit 3.0 43045
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:22
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:-
- Insulation Height:0.390" (9.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):8A
- Voltage Rating:600V
Related Products
CONN HEADER VERT 40POS 2MM 5PC
- 1: $5.00000

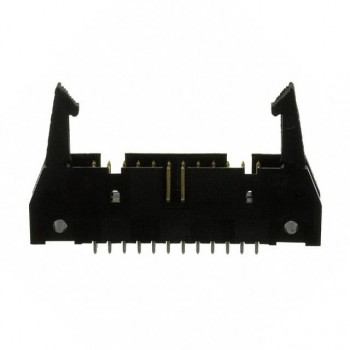

CONN HEADER VERT 40P 2.54MM 10PC
