In Stock: 965

Can ship immediately

Pricing:
  • 1$1.36
  • 10$1.20776
  • 100$1.0539
  • 500$0.87832
  • 1,000$0.79048
  • 5,000$0.70265
  • 10,000$0.67191

Quote It

Technical Details

  • Series:BERGSTIK® II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.095" (2.41mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


3-641214-4

CONN HEADER R/A 4POS 2.54MM

3-641214-4 Datasheet
  • 1: $1.36000
  • 10: $1.24306
  • 100: $1.07899

0010845090

CONN HEADER VERT 9POS 6.35MM

0010845090 Datasheet
  • 1: $1.36000
  • 10: $1.19300
  • 100: $1.02960

DF11GZ-14DP-2V(20)

CONN HEADER SMD 14POS 2MM

DF11GZ-14DP-2V(20) Datasheet
  • 1: $1.36000
  • 22: $1.19154
  • 110: $1.02779

98414-F06-16ULF

CONN HEADER VERT 16POS 2MM

98414-F06-16ULF Datasheet
  • 1: $1.36000
  • 31: $1.12672
  • 124: $1.03270

1-644753-2

CONN HEADER VERT 12POS 3.96MM

1-644753-2 Datasheet
  • 1: $1.36000
  • 10: $1.20541
  • 100: $1.05151

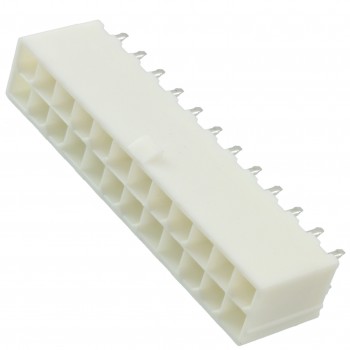

10127820-2422LF

CONN HEADER VERT 24POS 4.2MM

10127820-2422LF Datasheet
  • 1: $1.37000
  • 10: $1.24307
  • 105: $1.06578

MDF6-10DP-3.5DSA(05)

CONN HEADER VERT 10POS 3.5MM

MDF6-10DP-3.5DSA(05) Datasheet
  • 1: $1.36000
  • 10: $1.19946
  • 25: $1.12890

DF1B-18DP-2.5DSA(01)

CONN HEADER VERT 18POS 2.5MM

DF1B-18DP-2.5DSA(01) Datasheet
  • 1: $1.36000
  • 10: $1.19213
  • 100: $1.02850

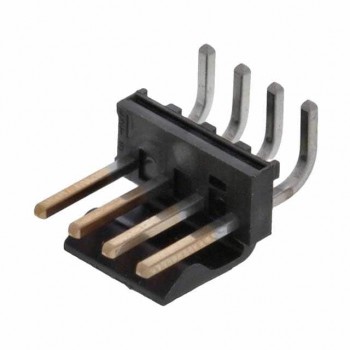

1718144004

CONN HEADER R/A 4POS 3.96MM

1718144004 Datasheet
  • 1: $1.94000
  • 840: $1.22010
  • 1680: $1.04067

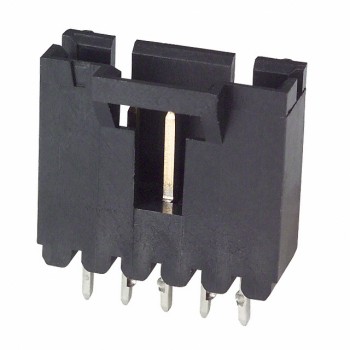

103908-4
