In Stock: 684

Can ship immediately

Pricing:
  • 1$1.37
  • 10$1.20882
  • 100$1.04251
  • 500$0.85295
  • 1,000$0.75817
  • 5,000$0.6634
  • 10,000$0.63023

Quote It

Technical Details

  • Series:Dubox™
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.197" (5.00mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:0.411" (10.44mm)
  • Insulation Height:0.368" (9.35mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


2BHR-26-VUA-SMT

CONN HEADER SMD 26POS 2MM

  • 1: $1.38000
  • 10: $1.21178
  • 140: $1.04551

1722871203

CONN HEADER VERT 3POS 3.5MM

1722871203 Datasheet
  • 1: $1.37000
  • 10: $1.24026
  • 100: $1.06334

66201821122

CONN HEADER VERT 18POS 3MM

  • 1: $1.37000
  • 10: $1.34200
  • 100: $1.23900

0366420001

CONN HEADER VERT 6POS 3.96MM

0366420001 Datasheet
  • 1: $1.38000
  • 10: $1.24804
  • 100: $1.06995

0877591050

CONN HEADER SMD 10POS 2MM

0877591050 Datasheet
  • 1: $1.38000
  • 10: $1.21700
  • 100: $1.04980

DF3-12P-2DS(01)

CONN HEADER R/A 12POS 2MM

DF3-12P-2DS(01) Datasheet
  • 1: $1.39000
  • 10: $1.22359
  • 100: $1.05522

DF22-5P-7.92DS(05)

CONN HEADER R/A 5POS 7.92MM

DF22-5P-7.92DS(05) Datasheet
  • 1: $1.38000
  • 10: $1.21479
  • 100: $1.04763

5041892470

CONN HEADER SMD R/A 24POS 1.25MM

5041892470 Datasheet
  • 1: $1.96000
  • 700: $1.27260
  • 1400: $1.09080

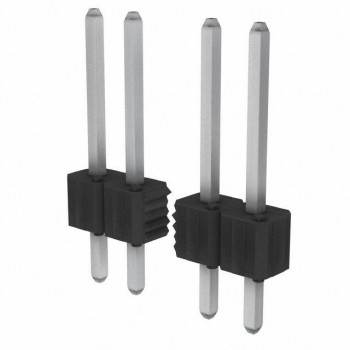

78511-436HLF
