In Stock: 335

Can ship immediately

Pricing:
  • 1$1.41
  • 24$1.23753
  • 120$1.06757
  • 504$0.87343
  • 1,008$0.77639
  • 5,016$0.67934
  • 10,008$0.64537

Quote It

Technical Details

  • Series:Dubox™
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.197" (5.00mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:0.411" (10.44mm)
  • Insulation Height:0.368" (9.35mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


64900411122

CONN HEADER VERT 4POS 4.2MM

  • 1: $1.41000
  • 10: $1.38600
  • 50: $1.27900

2-1445096-3

CONN HEADER SMD 3POS 3MM

2-1445096-3 Datasheet
  • 1: $1.74000
  • 210: $1.47852
  • 420: $1.34995

M80-8790422

CONN HEADER VERT 4POS 2MM

M80-8790422 Datasheet
  • 1: $1.42000
  • 21: $1.29127
  • 105: $1.10665

3010-16-002-12-00

CONN HEADER R/A 16POS 2.54MM

3010-16-002-12-00 Datasheet
  • 1: $1.44000
  • 10: $1.26761
  • 100: $1.09318

68602-224HLF

CONN HEADER VERT 24POS 2.54MM

68602-224HLF Datasheet
  • 1: $1.42000
  • 10: $1.24400
  • 100: $1.07360

67996-216HLF

CONN HEADER VERT 16POS 2.54MM

67996-216HLF Datasheet
  • 1: $1.42000
  • 10: $1.24632
  • 100: $1.07516

0705430250

CONN HEADER VERT 4POS 2.54MM

0705430250 Datasheet
  • 1: $1.42000
  • 10: $1.28400
  • 100: $1.10080

DF11-26DP-2DS(24)

CONN HEADER R/A 26POS 2MM

DF11-26DP-2DS(24) Datasheet
  • 1: $1.42000
  • 17: $1.25110
  • 102: $1.07964

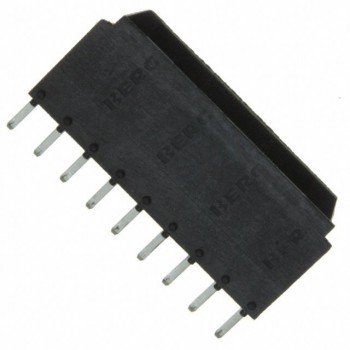

76384-309LF
