1722871204

Woodhead - Molex
In Stock: 913

Can ship immediately

Pricing:
  • 1$1.43
  • 10$1.29567
  • 100$1.11055
  • 500$0.92548
  • 1,000$0.79326
  • 5,000$0.70336
  • 10,000$0.68749

Quote It

Technical Details

  • Series:Ultra-Fit 172287
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.138" (3.50mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.465" (11.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 120°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:400V

Related Products


0705550002

CONN HEADER R/A 3POS 2.54MM

0705550002 Datasheet
  • 1: $1.43000
  • 10: $1.29900
  • 100: $1.11300

10075025-G01-12ULF

CONN HEADER VERT 12POS 2MM

10075025-G01-12ULF Datasheet
  • 1: $1.43000
  • 40: $1.18126
  • 120: $1.08274

A3A-10PA-2SV(71)

CONN HEADER SMD 10POS 2MM

A3A-10PA-2SV(71) Datasheet
  • 1: $1.43000
  • 48: $1.21815
  • 144: $1.11222

2-1586039-4

CONN HEADER VERT 24POS 4.2MM

2-1586039-4 Datasheet
  • 1: $1.44000
  • 10: $1.26507
  • 100: $1.09131

76385-405LF

CONN HEADER VERT 10POS 2.54MM

76385-405LF Datasheet
  • 1: $1.44000
  • 10: $1.26378
  • 100: $1.09017

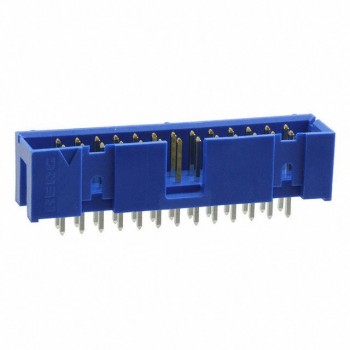

75869-305LF

CONN HEADER VERT 26POS 2.54MM

75869-305LF Datasheet
  • 1: $1.44000
  • 14: $1.26378
  • 112: $1.09016

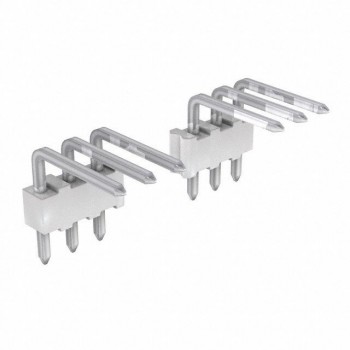

0022052151

CONN HEADER R/A 15POS 2.54MM

0022052151 Datasheet
  • 1: $1.44000
  • 10: $1.26863
  • 100: $1.09464

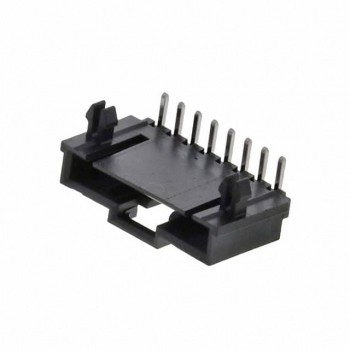

0705510007

CONN HEADER R/A 8POS 2.54MM

0705510007 Datasheet
  • 1: $1.44000
  • 10: $1.30500
  • 100: $1.11850

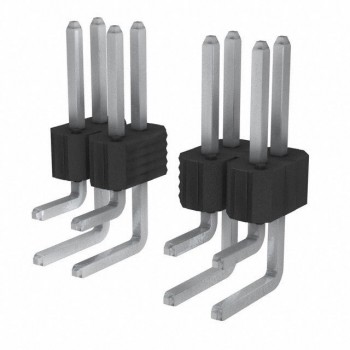

68020-472HLF
