3010-20-002-12-00

CnC Tech
In Stock: 830

Can ship immediately

Pricing:
  • 1$1.58
  • 10$1.43005
  • 100$1.22576
  • 648$1.02146
  • 1,296$0.87554
  • 5,184$0.77631
  • 10,368$0.7588

Quote It

Technical Details

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:-



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.323" (8.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


0878340611

CONN HEADER VERT 6POS 2.54MM

0878340611 Datasheet
  • 1: $1.58000
  • 10: $1.43005
  • 100: $1.22576

0878331619

CONN HEADER R/A 16POS 2MM

0878331619 Datasheet
  • 1: $1.57000
  • 10: $1.37948
  • 100: $1.19073

1723101108

CONN HEADER R/A 8POS 3.5MM

1723101108 Datasheet
  • 1: $1.57000
  • 10: $1.42700
  • 100: $1.22300

1722861205

CONN HEADER VERT 5POS 3.5MM

1722861205 Datasheet
  • 1: $1.57000
  • 10: $1.42268
  • 100: $1.21944

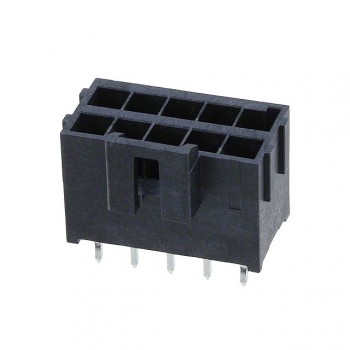

1722981110

CONN HEADER VERT 10POS 3.5MM

1722981110 Datasheet
  • 1: $1.59000
  • 10: $1.44619
  • 100: $1.23969

662006231722

CONN HEADER SMD R/A 6POS 3MM

  • 1: $1.57000
  • 10: $1.54000
  • 50: $1.42200

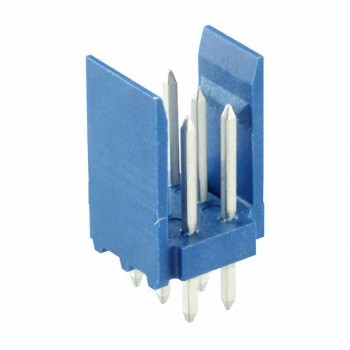

281739-3

CONN HEADER VERT 6POS 2.54MM

281739-3 Datasheet
  • 1: $1.58000
  • 10: $1.43167
  • 100: $1.22681

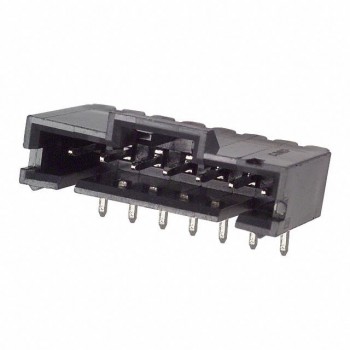

5-103634-6

CONN HEADER R/A 7POS 2.54MM

5-103634-6 Datasheet
  • 1: $1.58000
  • 26: $1.34753
  • 104: $1.23058

09185107323

CONN HEADER R/A 10POS 2.54MM

09185107323 Datasheet
  • 1: $1.58000
  • 10: $1.43370
  • 25: $1.34593

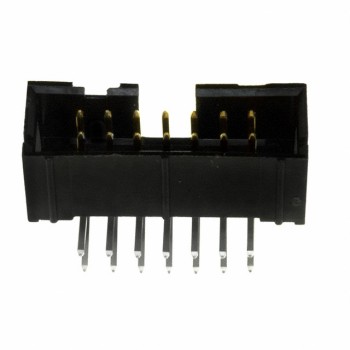

10056845-114LF
