1510634010

Woodhead - Molex
In Stock: 572

Can ship immediately

Pricing:
  • 1$1.59
  • 24$1.44378
  • 120$1.23736
  • 504$1.03112
  • 1,008$0.88381
  • 5,016$0.78364
  • 10,008$0.76597

Quote It

Technical Details

  • Series:Milli-Grid 151063
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.142" (3.60mm)
  • Overall Contact Length:-
  • Insulation Height:0.413" (10.49mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:98.4µin (2.50µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0039299106

CONN HEADER VERT 10POS 4.2MM

  • 1: $1.61000

572-002-420-101

CONN HEADER VERT 2POS 5.8MM

572-002-420-101 Datasheet
  • 1: $1.59000
  • 10: $1.43962
  • 25: $1.35127

A3A-12PA-2SV(71)

CONN HEADER SMD 12POS 2MM

A3A-12PA-2SV(71) Datasheet
  • 1: $1.59000
  • 40: $1.35624
  • 120: $1.23830

0901200134

CONN HEADER VERT 14POS 2.54MM

0901200134 Datasheet
  • 1: $1.61000
  • 10: $1.45906
  • 100: $1.25037

3-647050-2

CONN HEADER VERT 2POS 2.54MM

3-647050-2 Datasheet
  • 1: $1.60000
  • 10: $1.44873
  • 100: $1.24141

10056845-120LF

CONN HEADER R/A 20POS 2.54MM

10056845-120LF Datasheet
  • 1: $1.60000
  • 18: $1.41111
  • 108: $1.21754

10072354-G01-12ULF

CONN HEADER R/A 12POS 2MM

10072354-G01-12ULF Datasheet
  • 1: $1.61000
  • 40: $1.37093
  • 120: $1.25162

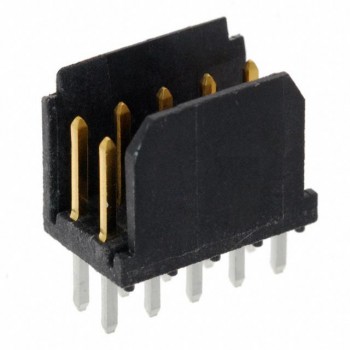

76385-305LF

CONN HEADER VERT 10POS 2.54MM

76385-305LF Datasheet
  • 1: $1.61000
  • 10: $1.45656
  • 100: $1.24888

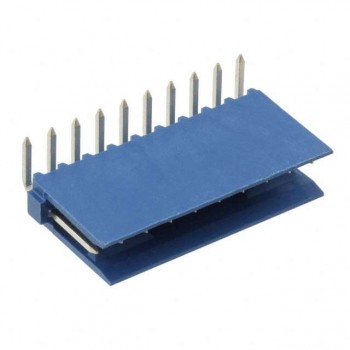

1-281698-0

CONN HEADER R/A 10POS 2.54MM

1-281698-0 Datasheet
  • 1: $1.61000
  • 10: $1.46286
  • 100: $1.25388

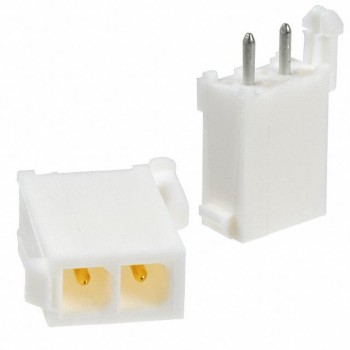

770166-2
