In Stock: 284

Can ship immediately

Pricing:
  • 1$1.69
  • 10$1.53725
  • 100$1.31744
  • 500$1.09787
  • 1,000$0.94104
  • 5,000$0.83438
  • 10,000$0.81557

Quote It

Technical Details

  • Series:Dubox™
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.197" (5.00mm)



  • Contact Length - Post:0.154" (3.91mm)
  • Overall Contact Length:-
  • Insulation Height:0.307" (7.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


N3793-6002RB

CONN HEADER VERT 10POS 2.54MM

N3793-6002RB Datasheet
  • 1: $1.69000
  • 10: $1.53062
  • 100: $1.31178

0901210767

CONN HEADER R/A 7POS 2.54MM

  • 1: $1.70000

67996-472HLF

CONN HEADER VERT 72POS 2.54MM

67996-472HLF Datasheet
  • 1: $1.70000
  • 10: $1.54516
  • 100: $1.32481

0705450041

CONN HEADER VERT 7POS 2.54MM

  • 1: $1.70000

GT8E-5P-DS

CONN HEADER R/A 5POS 2MM

GT8E-5P-DS Datasheet
  • 1: $1.72000
  • 10: $1.55842
  • 144: $1.33532

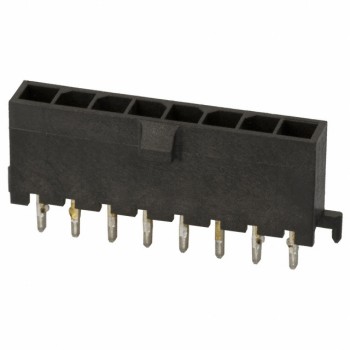

2-1445050-8

CONN HEADER VERT 8POS 3MM

2-1445050-8 Datasheet
  • 1: $1.73000
  • 10: $1.57973
  • 140: $1.37066

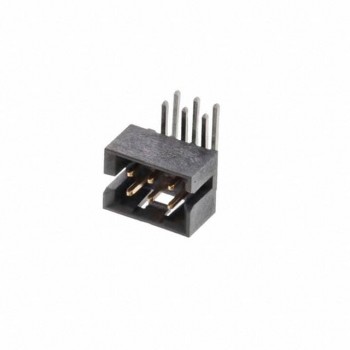

0878330632

CONN HEADER R/A 6POS 2MM

0878330632 Datasheet
  • 1: $1.71000
  • 10: $1.55040
  • 100: $1.32893

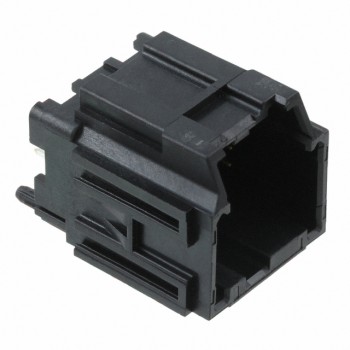

0346900120

CONN HEADER VERT 12POS 2.54MM

0346900120 Datasheet
  • 1: $1.71000
  • 10: $1.55317
  • 100: $1.33127

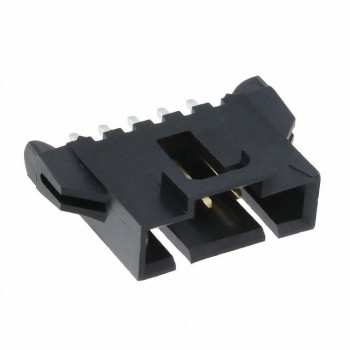

0705450074

CONN HEADER VERT 5POS 2.54MM

0705450074 Datasheet
  • 1: $1.71000
  • 10: $1.55200
  • 100: $1.33060

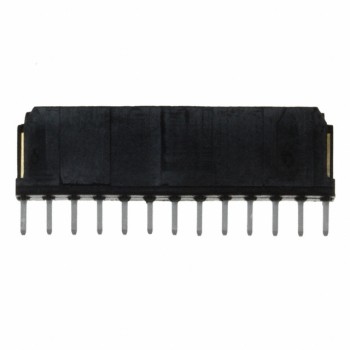

76384-313LF
