0559593030

Woodhead - Molex
In Stock: 259

Can ship immediately

Pricing:
  • 1$1.73
  • 10$1.56505
  • 200$1.34181
  • 600$1.11814
  • 1,000$0.95842
  • 5,000$0.84979
  • 10,000$0.83063

Quote It

Technical Details

  • Series:MicroClasp 55959
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.197" (5.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.461" (11.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


68002-236HLF

CONN HEADER VERT 36POS 2.54MM

68002-236HLF Datasheet
  • 1: $1.72000
  • 10: $1.56474
  • 100: $1.35824

61001018221

CONN HEADER SMD 10POS 2.54MM

  • 1: $1.72000
  • 10: $1.46300
  • 24: $1.21917

0705410007

CONN HEADER VERT 8POS 2.54MM

0705410007 Datasheet
  • 1: $1.73000
  • 10: $1.56600
  • 100: $1.34230

0559173610

CONN HEADER VERT 36POS 2MM

0559173610 Datasheet
  • 1: $1.75000
  • 10: $1.59118
  • 300: $1.23410

09185067903

CONN HEADER R/A 6POS 2.54MM

09185067903 Datasheet
  • 1: $1.73000
  • 10: $1.56582
  • 25: $1.46995

09185067913

CONN HEADER R/A 6POS 2.54MM

09185067913 Datasheet
  • 1: $1.73000
  • 10: $1.56582
  • 25: $1.46995

1723162204

CONN HEADER R/A 4POS 3.5MM

1723162204 Datasheet
  • 1: $1.73000
  • 10: $1.57000
  • 100: $1.34550

SBH41-NBPB-D05-ST-BK

CONN HEADER VERT 10POS 1.27MM

SBH41-NBPB-D05-ST-BK Datasheet
  • 1: $1.74000
  • 10: $1.57700
  • 100: $1.35140

XG4A-1434

CONN HEADER R/A 14POS 2.54MM

XG4A-1434 Datasheet
  • 1: $1.75000
  • 80: $1.44995
  • 160: $1.38893

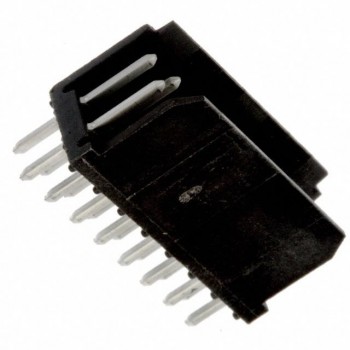

76385-408LF
