1053092206

Woodhead - Molex
In Stock: 1,140

Can ship immediately

Pricing:
  • 1$1.77
  • 10$1.60205
  • 102$1.37364
  • 510$1.14467
  • 1,020$0.98114
  • 5,100$0.86994
  • 10,098$0.85032

Quote It

Technical Details

  • Series:Nano-Fit 105309
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.356" (9.05mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:250V

Related Products


75867-103LF

CONN HEADER R/A 16POS 2.54MM

75867-103LF Datasheet
  • 1: $1.76000
  • 21: $1.59238
  • 105: $1.36481

0705550009

CONN HEADER R/A 10POS 2.54MM

  • 1: $1.76000

09195107324

CONN HEADER VERT 10POS 2.54MM

09195107324 Datasheet
  • 1: $1.77000
  • 10: $1.60611
  • 25: $1.50778

66202221022

CONN HEADER R/A 22POS 3MM

  • 1: $1.76000
  • 10: $1.72700
  • 100: $1.59400

3-641210-3

CONN HEADER R/A 3POS 3.96MM

3-641210-3 Datasheet
  • 1: $1.77000
  • 10: $1.60670
  • 100: $1.37754

68015-136HLF

CONN HEADER R/A 36POS 2.54MM

68015-136HLF Datasheet
  • 1: $1.77000
  • 10: $1.62188
  • 100: $1.40771

0026605120

CONN HEADER R/A 12POS 3.96MM

  • 1: $1.77000

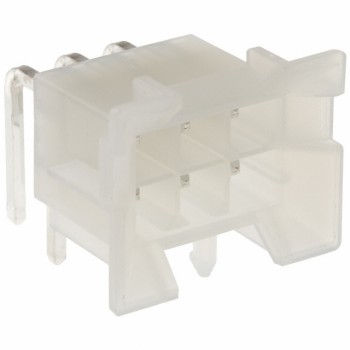

0015246060

CONN HEADER R/A 6POS 4.2MM

  • 1: $1.78000

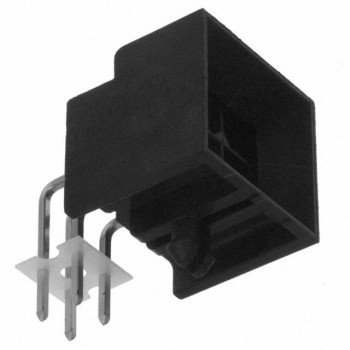

0444280402

CONN HEADER R/A 4POS 3MM

  • 1: $1.80000

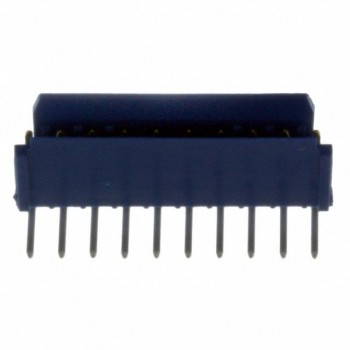

76382-310LF
