In Stock: 378

Can ship immediately

Pricing:
  • 1$2.14
  • 10$1.94316
  • 143$1.66564
  • 572$1.38804
  • 1,001$1.18974
  • 5,005$1.05491

Quote It

Technical Details

  • Series:Micro MATE-N-LOK
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.364" (9.25mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250V

Related Products


1054311203

CONN HEADER SMD 3POS 2.5MM

  • 1: $3.04000

1723161206

CONN HEADER R/A 6POS 3.5MM

1723161206 Datasheet
  • 1: $2.15000
  • 10: $1.94812
  • 100: $1.67014

0705410040

CONN HEADER VERT 6POS 2.54MM

0705410040 Datasheet
  • 1: $2.13000
  • 10: $1.93600
  • 100: $1.65900

D3408-5302-AR

CONN HEADER R/A 16POS 2.54MM

D3408-5302-AR Datasheet
  • 1: $2.15000
  • 10: $1.94998
  • 350: $1.51206

0022232151

CONN HEADER VERT 15POS 2.54MM

0022232151 Datasheet
  • 1: $2.13000
  • 10: $1.92911
  • 100: $1.65353

DF51A-26DP-2DSA(01)

CONN HEADER VERT 26POS 2MM

DF51A-26DP-2DSA(01) Datasheet
  • 1: $2.13000
  • 10: $1.94132
  • 100: $1.68503

0346900160

CONN HEADER VERT 16POS 2.54MM

0346900160 Datasheet
  • 1: $2.16000
  • 10: $1.97123
  • 100: $1.71091

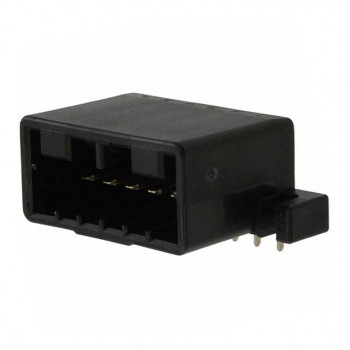

175783-2

CONN HEADER R/A 6POS 3.5MM

175783-2 Datasheet
  • 1: $2.14000
  • 10: $1.93964
  • 100: $1.66291

M50-4700545

CONN HEADER VERT 10POS 1.27MM

M50-4700545 Datasheet
  • 1: $2.14000
  • 63: $1.74237
  • 126: $1.66320

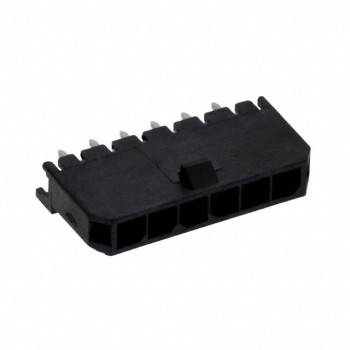

0436500617
