0740991008

Woodhead - Molex
In Stock: 738

Can ship immediately

Pricing:
  • 1$2.16
  • 10$1.964
  • 100$1.6832
  • 500$1.40262
  • 1,104$1.20225
  • 5,520$1.06599

Quote It

Technical Details

  • Series:SL 74099
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.450" (11.43mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0901210768

CONN HEADER R/A 8POS 2.54MM

0901210768 Datasheet
  • 1: $2.16000
  • 10: $1.96352
  • 100: $1.68324

DF60-1P-10.16DSA(26)

CONN HEADER VERT 1POS

DF60-1P-10.16DSA(26) Datasheet
  • 1: $2.18000
  • 10: $1.97381
  • 160: $1.69138

0705450044

CONN HEADER VERT 10POS 2.54MM

0705450044 Datasheet
  • 1: $2.16000
  • 10: $1.96000
  • 100: $1.68000

826647-3

CONN HEADER VERT 3POS 2.54MM

826647-3 Datasheet
  • 1: $2.16000
  • 10: $1.96020
  • 100: $1.68059

M22-2022005

CONN HEADER VERT 40POS 2MM

M22-2022005 Datasheet
  • 1: $2.17000
  • 10: $1.97100
  • 100: $1.68942

77315-818-36LF

CONN HEADER R/A 36POS 2.54MM

77315-818-36LF Datasheet
  • 1: $2.17000
  • 10: $1.96811
  • 100: $1.68677

102153-3

CONN HEADER VERT 16POS 2.54MM

102153-3 Datasheet
  • 1: $2.20000
  • 70: $1.81816
  • 140: $1.74241

5104340-1

CONN HEADER R/A 10POS 2.54MM

5104340-1 Datasheet
  • 1: $2.19000
  • 10: $1.99658
  • 125: $1.73325

09185106913

CONN HEADER R/A 10POS 2.54MM

09185106913 Datasheet
  • 1: $2.19000
  • 10: $1.99132
  • 25: $1.86940

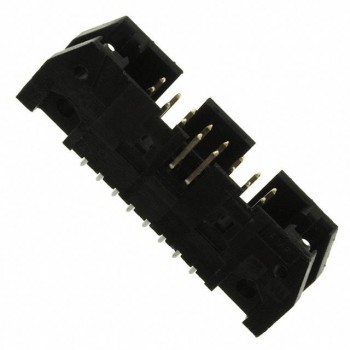

5102153-3
