In Stock: 711

Can ship immediately

Pricing:
  • 1$2.57
  • 10$2.34746
  • 100$2.0371
  • 500$1.7271
  • 1,000$1.50566
  • 5,000$1.3551

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.639" (16.23mm)
  • Insulation Height:0.549" (13.94mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:-
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


6-103639-5

CONN HEADER VERT 16POS 2.54MM

6-103639-5 Datasheet
  • 1: $2.57000
  • 12: $2.33194
  • 108: $1.99918

66506-008LF

CONN HEADER VERT 20POS 2.54MM

66506-008LF Datasheet
  • 1: $2.61000
  • 30: $2.21905
  • 120: $2.02611

09185167914

CONN HEADER VERT 16POS 2.54MM

09185167914 Datasheet
  • 1: $2.58000
  • 10: $2.34071
  • 25: $2.19714

103904-5

CONN HEADER R/A 6POS 2.54MM

103904-5 Datasheet
  • 1: $2.59000
  • 30: $2.20468
  • 120: $2.01300

5102159-4

CONN HEADER R/A 20POS 2.54MM

5102159-4 Datasheet
  • 1: $2.59000
  • 10: $2.35492
  • 100: $2.01843

0877603416

CONN HEADER R/A 34POS 2MM

  • 1: $2.62000

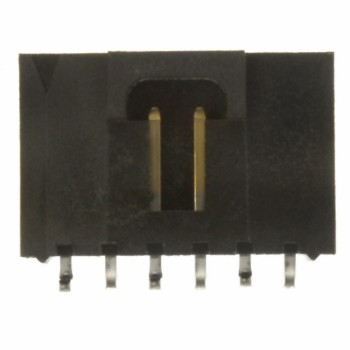

0740991006

CONN HEADER SMD 6POS 2.54MM

0740991006 Datasheet
  • 1: $2.59000
  • 10: $2.35200
  • 100: $2.01600

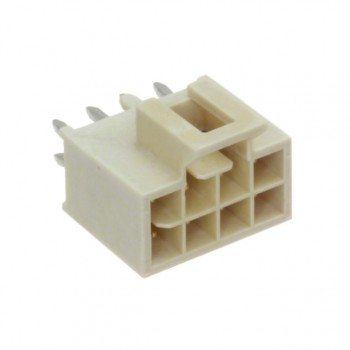

1053102308
