770743-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

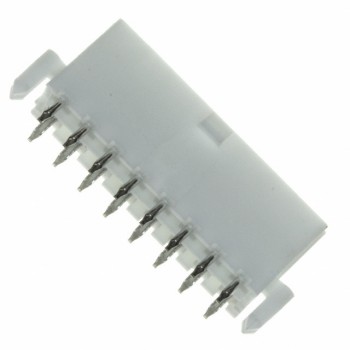

- DescriptionCONN HEADER VERT 10POS 4.14MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 770743-1 Datasheet
-
ECAD Model
- Share
In Stock: 815
Can ship immediately
Pricing:
- 1$2.62
- 10$2.37477
- 100$2.03532
- 500$1.69608
- 1,000$1.45379
- 5,000$1.28902
Quote It
Technical Details
- Series:Mini-Universal MATE-N-LOK
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.163" (4.14mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.163" (4.14mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.175" (4.45mm)
- Overall Contact Length:-
- Insulation Height:0.531" (13.50mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Lock
- Operating Temperature:-20°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:600VAC
