0740990003
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 3POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0740990003 Datasheet
-
ECAD Model
- Share
In Stock: 812
Can ship immediately
Pricing:
- 1$2.73
- 2,496$1.39762
Quote It
Technical Details
- Series:SL 74099
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.450" (11.43mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products
CONN HEADER VERT 12POS 3MM
- 1: $2.78000

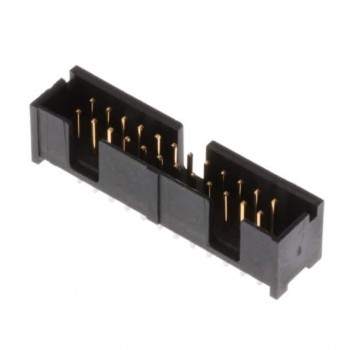

CONN HEADER VERT 34POS 2.54MM
