09185407904

HARTING
In Stock: 243

Can ship immediately

Pricing:
  • 1$4.27
  • 10$4.0992
  • 25$3.7576
  • 50$3.5868
  • 100$3.416
  • 250$2.989
  • 500$2.9036
  • 1,000$2.4766

Quote It

Technical Details

  • Series:SEK
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Long
  • Contact Length - Mating:0.228" (5.80mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.681" (17.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


PBC36SAGN

CONN HEADER VERT 36POS 2.54MM

PBC36SAGN Datasheet
  • 1: $4.23000
  • 10: $3.78700
  • 100: $3.11850

0436501204

CONN HEADER R/A 12POS 3MM

  • 1: $4.32000

09185507903

CONN HEADER R/A 50POS 2.54MM

09185507903 Datasheet
  • 1: $4.28000
  • 10: $4.10880
  • 25: $3.76640

09185507904

CONN HEADER VERT 50POS 2.54MM

09185507904 Datasheet
  • 1: $4.28000
  • 10: $4.10880
  • 25: $3.76640

61003218221

CONN HEADER SMD 32POS 2.54MM

  • 1: $4.31000
  • 7: $3.65857
  • 28: $3.04893

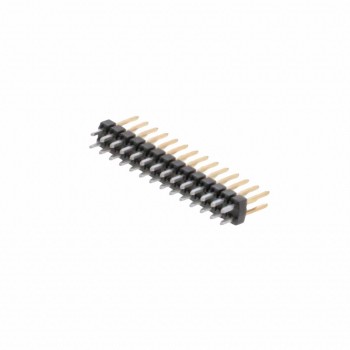

0901310774

CONN HEADER VERT 28POS 2.54MM

  • 1: $4.35000

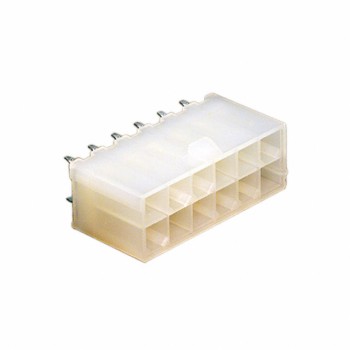

0039290123

CONN HEADER VERT 12POS 4.2MM

  • 1: $4.37000

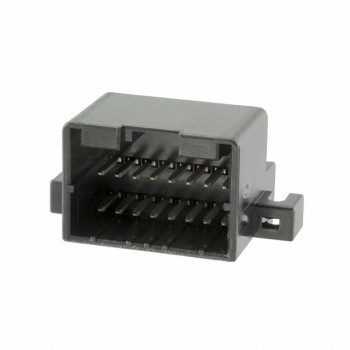

174053-2
