125SH-A-08-TS

Adam Tech
In Stock: 632

Can ship immediately

Pricing:
  • 1$0.75
  • 10$0.66385
  • 100$0.57233
  • 500$0.4683
  • 1,000$0.41627
  • 5,000$0.36424
  • 10,000$0.34602

Quote It

Technical Details

  • Series:125SH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.091" (2.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.185" (4.70mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:125VAC/DC

Related Products


1SH-A-07-TS-SMT

CONN HEADER SMD 7POS 1MM

  • 1: $0.75000
  • 10: $0.66284
  • 100: $0.57213

DME-M-05-RA-E

CONN HEADER R/A 5POS 6.35MM

  • 1: $0.76000
  • 10: $0.67184
  • 100: $0.57963

125SH-A-08-TS-SMT

CONN HEADER SMD 8POS 1.25MM

  • 1: $0.75000
  • 10: $0.66385
  • 100: $0.57233

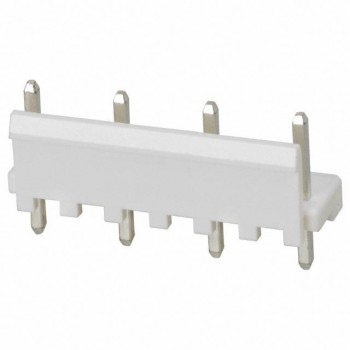

1-1318301-4
